APPLICATION

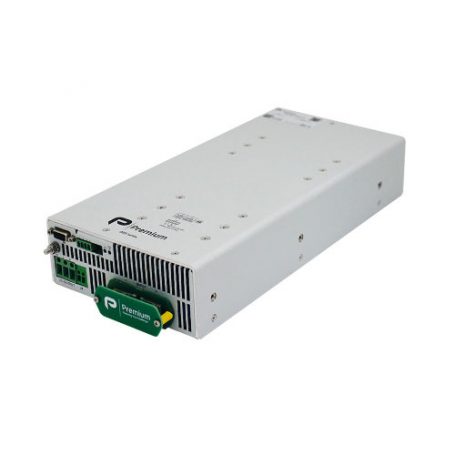

The ODS-1500 series are 120 or 230Vac dc ac Inverters. The ODS-1500 series are rugged construction & ideal for railway & defence applications
Features & functions include:
Selection of 50/60 Hz via DIP switch
Select local/remote (RS232) via DIP switch
Shutdown by applying voltage to pins 3&4 of signal connector
“Y” connect three units to three phase supply
Green LED output ok
Red alarm LED for:
output voltage not ok
output over-current
high or low input voltage
unit shutdown by overcurrent or remote off
The ODS-1500 inverter features maximum average power protection as well as maximum output peak current protection. This protects the semiconductors even when an output short-circuit occurs. It also features a disable function for input undervoltage, which protects the batteries from harmful discharges.
Six M4 threaded holes are provided for chassis mounting.
The ODS-1500-71xx-T version is designed for railway applications to EN50155; EN50121-3-2.
feature list
Sine wave output (THD < 2%)
RS232 communication port
Selectable output frquency: 50/60Hz
Adjustable output voltage
High efficiency > 87%
High input/output isolation: 3kVrms
Output overload protection
Battery undervoltage protection
Output ok green LED indication
Alarm red LED indication
Output alarm relay contact
Remote inhibit
Three-phase syncronization
Cooling by internal variable speed fan
Approvals: EN62368; EN50155; EN61000; Railway version to EN50155; EN50121-3-2.
MTBF: 130,000h
Operating temperature range: -20 to +70°C (50% load); -20 to 55°C (full load)
3 year warranty for standard products
5 year warranty for the railway versions
| MODEL NUMBER | INPUT RANGE | OUTPUT | POWER |
|---|---|---|---|
| ODS-1500-7111 | 9.5-15VDC | 230Vac | 1500VA |
| ODS-1500-7113 | 16.8-30VDC | 230Vac | 1500VA |
| ODS-1500-7114 | 25.2-45VDC | 230Vac | 1500VA |
| ODS-1500-7115 | 33.6-60VDC | 230Vac | 1500VA |
| ODS-1500-7116 | 50.4-90VDC | 230Vac | 1500VA |
| ODS-1500-7117 | 77-138VDC | 230Vac | 1500VA |
