APPLICATION

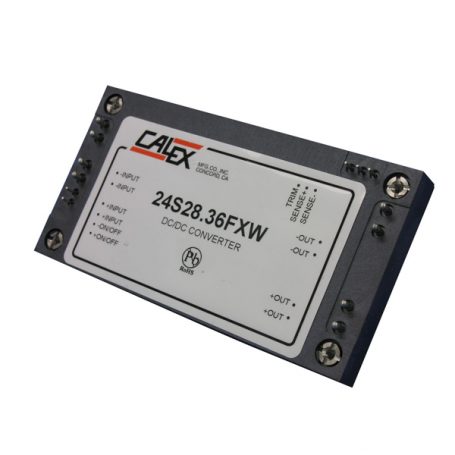

The 4:1 Input Voltage 1000 Watt Single FXW DC/DC converter provides a precisely regulated dc output. The output voltage is fully isolated from the input, allowing the output to be positive or negative polarity and with various ground connections. The 1000 Watt FXW meets the most rigorous performance standards in an industry standard footprint for mobile (12VIN), process control (24VIN), and military COTS (28VIN) applications.
The 4:1 Input Voltage 1000 Watt FXW includes trim and remote ON/OFF. Threaded through holes are provided to allow easy mounting or addition of a heatsink for extended temperature operation.
The converters high efficiency and high power density are accomplished through use of high-efficiency synchronous rectification technology, advanced electronic circuit, packaging and thermal design thus resulting in a high reliability product. Converter operates at a fixed frequency and follows conservative component de-rating guidelines.
feature list
4:1 Input voltage range
High power density
Small size 2.4” x 4.7” x 0.52”
Efficiency up to 96.0%
Excellent thermal performance with metal case
Over-Current and Short Circuit Protection
Over-Temperature protection
Auto-restart
Monotonic startup into pre-bias
Constant frequency
Remote ON/OFF
Good shock and vibration damping
Temperature Range -40ºC to +105ºC Available
RoHS Compliant
UL60950 Approved
MODEL NUMBER | INPUT RANGE | OUTPUT | POWER |
---|---|---|---|
24S12.84FXW | 9V-36V | 12V | 1000W |
24S24.42FXW | 9V-36V | 24V | 1000W |
24S28.36FXW | 9V-36V | 28V | 1000W |
24S48.21FXW | 9V-36V | 48V | 1000W |
24S53.19FXW | 9V-36V | 53V | 1000W |
