Power > ACI-3000 Series – Inrush Limiter
ACI-3000 Series | InRush Current Limiter Accessory | ODS/ODX Series
ACI-3000 Series | InRush Current Limiter Accessory | ODS/ODX Series

ACI-3000 Series – Inrush Limiter

Inputs: 12/24/36/48/72/110Vdc
Power: 3000 VA
Tamb: -40 to +80°C
EN 62368-1 Approved
5 Year Warranty
Made in Spain

Make an enquiry
X

Make an Enquiry

  • This field is for validation purposes and should be left unchanged.
have a question? Contact us now

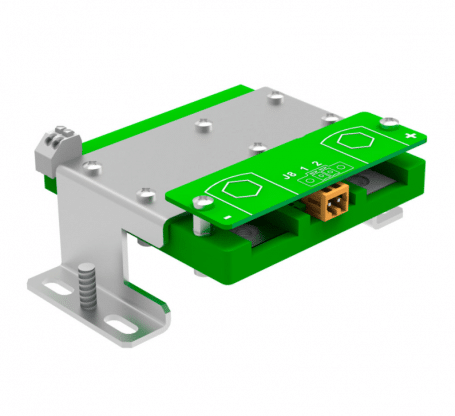

The ACI-3000 is an inrush current limiter with active protection against reverse polarity available as a complimentary accessory for Premium PSU’s DC/AC inverter series: ODS-1500, ODS-3000 and ODX-3000 Series. It can also completely stop the inverter via the ON/OFF input so that only a very small standby current remains.

MODEL NUMBERINPUT RANGEINRUSH CURRENT
ACI-3000-933316.8V dc - 30V dc< 10 A
ACI-3000-933425.2V dc - 45V dcTBD
ACI-3000-933533.6V dc - 60V dcTBD
ACI-3000-933650.4V dc - 90V dcTBD
ACI-3000-933777V dc - 138V dc< 7 A

Downloads

Click on the link below for an instant download.

  • ACI-3000 Series Inrush Limiter Datasheet
