APPLICATION

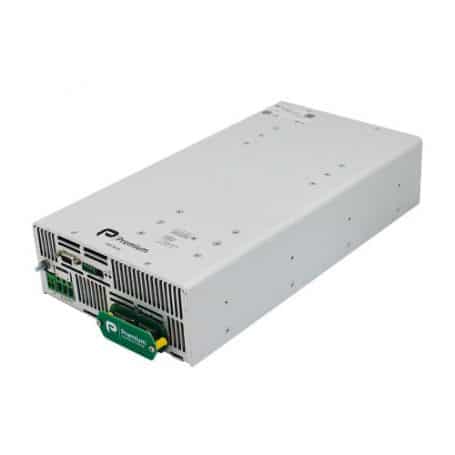

The ODS-3000 series are 120 or 230Vac dc ac Inverters. The ODS-3000 series are rugged construction & ideal for railway & defence applications
Functions:
Select 50/60 Hz via DIP switch
Select local/remote (RS232) via DIP switch
Shutdown by applying voltage to pins 3&4 of signal connector
“Y” connect three units to three phase supply
Green LED output ok
Red alarm LED for:
output voltage not ok
output over-current
high or low input voltage
unit shutdown by overcurrent or remote off
The ODS-3000 inverter features maximum average power protection as well as maximum output peak current protection. This protects the semiconductors even when an output short-circuit occurs. It also features a disable function for input under voltage, which protects the batteries from harmful discharges.
Six M4 threaded holes are provided for chassis mounting.
The ODS-3000-71xx-T version is designed for railway applications to EN50155; EN50121-3-2.
feature list
Sine wave output (THD < 2%)
RS232 communication port
Selectable output frquency: 50/60Hz
Adjustable output voltage
High efficiency > 87%
High input/output isolation: 3kVrms
Output overload protection
Battery undervoltage protection
Output ok green LED indication
Alarm red LED indication
Output alarm relay contact
Remote inhibit opto-coupled
Three-phase synchronisation
Cooling by internal variable speed fan
Approvals: EN62368; EN50155; EN61000; Railway version to EN50155; EN50121-3-2.
MTBF: 100,000h
Operating temperature range: -20 to +70oC (50% load); -20 to 55oC (full load)
3 year warranty for standard products
5 year warranty for the railway versions
| MODEL NUMBER | INPUT RANGE | OUTPUT | POWER |
|---|---|---|---|
| ODS-3000-7153 | 16.8-30VDC | 230Vac | 2400VA |
| ODS-3000-7154 | 25.2-45VDC | 230Vac | 3000VA |
| ODS-3000-7155 | 33.6-60VDC | 230Vac | 3000VA |
| ODS-3000-7156 | 50.4-90VDC | 230Vac | 3000VA |
| ODS-3000-7157 | 77-138VDC | 230Vac | 3000VA |
| ODS-3000-7177 | 77-138VDC | 230Vac | 4000VA |
| ODS-3000-7178 | 84-150VDC | 230Vac | 4000VA |
| ODS-3000-7179 | 290-330VDC | 230Vac | 4000VA |
