KUB48 Series – 12V & 24V Wide Input point of Load Converters

21st February 2020

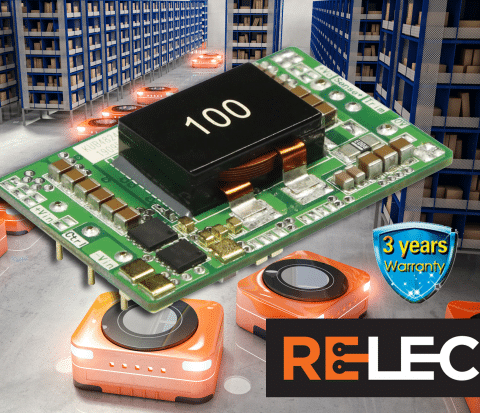

The KUB48 Series; High-Density, Non-Isolated Converters for Motor Drives

Relec Electronics are pleased to announce the general availability of the KUB48 Series, ultra high density non-isolated DC-DC Converters. The KUB48 Series are ideally suited to robotic, home automation and general logistics applications where the primary source is a battery.

Housed in an industry standard quarter brick package, and with an efficiency of 97%, the KUB48 Series are the ideal DC-DC Converter solution where regulated 12V or 24V rails up to 10 Amps are required from unregulated battery sources.

The KUB48 series was originally developed for the logistics robot market where either 12V or 24V regulated rails are required to power the drive train, and also provide full output short circuit, over-current, and input under-voltage protection, thus ensuring that no damage can come to either the batteries or the motors.

Key features and benefits of the KUB48 Series are:

KUB48 Series Attributes @ Relec
Efficency
Efficency up to 97%
Input Rang of 16 to 75V DC
Temperature Range: -40°C to +85°C
No Heat Sink Required
Short Circuit Protection
Quarter Brick Package
Adjustable Start-Up Voltage
EN62368 Safety Approval

The programmable start up feature ensures power is only delivered when the batteries are charged to an acceptable level.

Applications

The KUB48 Series are ideally suited to a wide variety of motor control applications including:

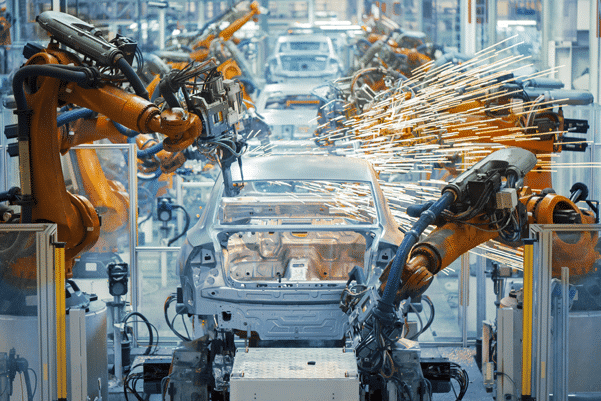

Logistics Robots | Industrial Automation | Cleaning Equipment | Golf Trolleys | Automated Lawnmowers

The KUB48 series are available to sample now with prices starting as low as £15.00.  Relec’s technical team are on hand to take you through the electrical, thermal and mechanical aspects of your design.
