Showing 177–192 of 369 results
-
EC7BW18-72 Series
Input Range: 8.5-160V dc
Output Range: 5-±24V
Power: 20W
Form Factor: 2″ x 1″ isolated module
Cooling Method: Free air convection
Certifications: UL62368-1, EN50155, EN45545-2 -
ECB40W18-ECRT/EDRT Series
Input Range: 9-160V dc
Output Range: 3.3V-48V
Power: 40W
Form Factor: Encapsulated / DIN-rail module
Cooling Method: Conduction via baseplate
Certifications: EN50155, EN45545-2, UL62368-1 -
ECDA Series
Input Range: 85-305V ac .
Output Range: 12V / 28V.
Power: 500W / 700W / 1000W.
Form Factor: Baseplate mount.
Cooling Method: Conductive cooling.
Certifications: UL, IEC, EN62368-1, CE, UKCA, MIL-STD-461, MIL-STD-810H, MIL-STD-1399-300 -
ECLB40W Series
Input Range: 9-36V / 18-75V dc
Output Range: 3.3-24V
Power: 40W
Form Factor: Low-profile case
Cooling Method: Free air convection
Certifications: IEC/EN/UL62368-1 -
ECLB60W Series
Input Range: 9-36V / 18-75V dc
Output Range: 3.3-48V
Power: 60W
Form Factor: Low-profile case
Cooling Method: Free air convection / conduction
Certifications: IEC/EN/UL62368-1 -
ECLB75W Series
Input Range: 9-36V / 18-75V dc
Output Range: 5-48V
Power: 75W
Form Factor: PCB Mount
Cooling Method: Baseplate conduction
Certifications: UL62368-1, EN62368-1, IEC62368-1 -

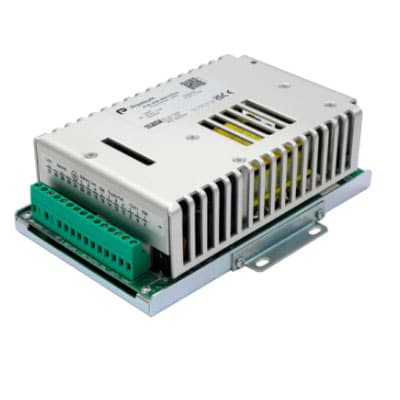

ECS-100 Series
Input Range: 90-264V ac
Output Range: 12V-48V
Power: 100W
Form Factor: Compact desktop / DIN-rail mountable
Cooling Method: Convection
Certifications: EN60950-1, EN62368-1, EN61000, EN50121-4 -

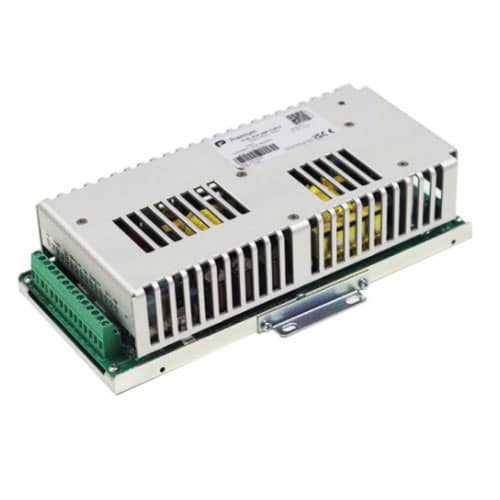

ECS-200 Series
Input Range: 100/220V ac ±20%
Output Range: 12V, 24V, 48V
Power: 200W
Form Factor: Compact desktop / DIN-rail mountable
Cooling Method: Convection
Certifications: EN60950-1, EN62368-1, EN61000 -

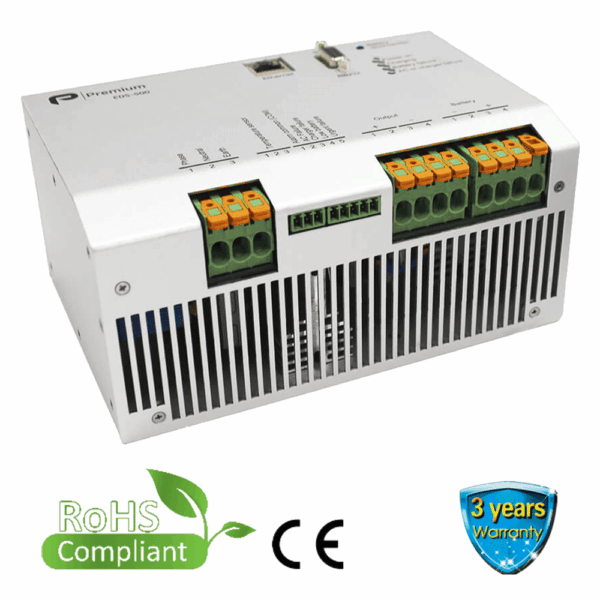

EDS-500 Series
Input Range: 90-264V ac.
Output Range: 12-110V.
Power: 500W.
Form Factor: Compact metal enclosed UPS-charger.
Cooling Method: Natural convection.
Certifications: IEC62368-1, EN61000-6-2, EN61000-6-4, CE, UKCA -
EFIL-28
Rated Current: 20 A
Rated Voltage: 9.5-36 V dc
Frequency Range: DC
Leakage Current: <1 mA
Form Factor: Half-brick chassis mount module
Certifications: MIL-STD-461E, UL60950, RoHS -
EIRE300 Series
Input Range: 85-264V ac.
Output Range: 12-48V / 54V.
Power: 200W convection / 300W fan cooled.
Form Factor: Open frame, 101.3 x 50.8 x 25.4 mm.
Cooling Method: Convection or forced air.
Certifications: IEC/UL60601-1, IEC/UL62368-1, IEC60335-1, IEC61558-1, IEC61010-1, CE, RoHS, EN55032-B -

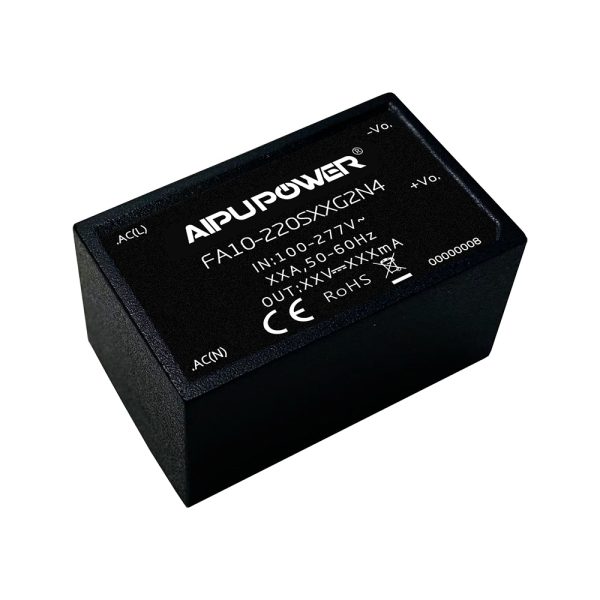

FA10-220SxxG2N4 Series
Input Range: 85-305V ac / 120-430V dc.
Output Range: 3.3-24V.
Power: 8.6-10W.
Form Factor: PCB / Chassis / DIN-Rail .
Cooling Method: Convection.
Certifications: IEC/EN/UL 62368, IEC61558 -

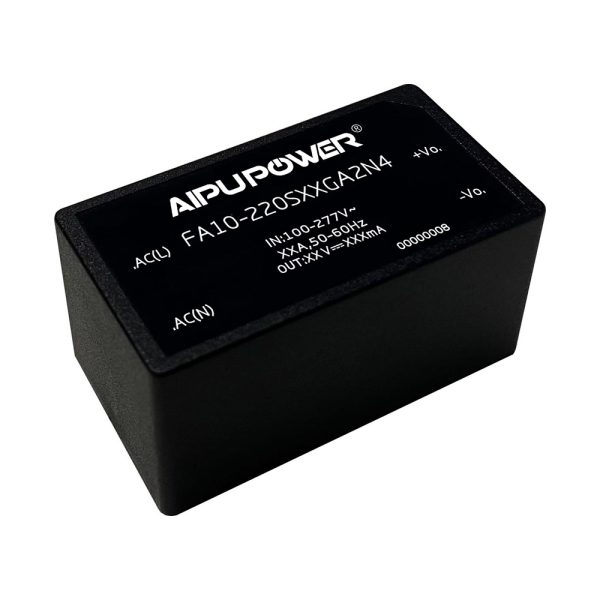

FA10-220SxxGA2N4 Series
Input Range: 85-305V ac / 120-430V dc.
Output Range: 3.3-24V.
Power: 10W.
Form Factor: PCB, chassis or DIN-rail module.
Cooling Method: Convection.
Certifications: IEC62368, UL62368, EN62368, CE, RoHS -
FA15-220SxxG2N4 Series
Input Range: 85-305V ac / 120-430V dc.
Output Range: 5-24V.
Power: 15W.
Form Factor: Compact PCB module.
Cooling Method: Convection.
Certifications: CE, TUV -

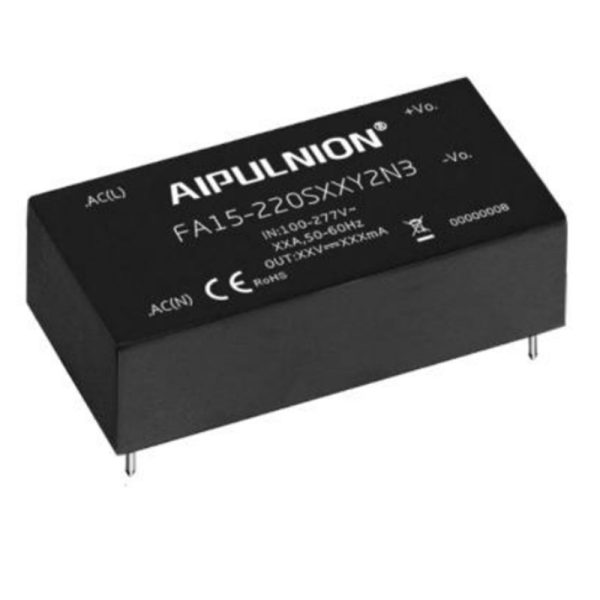

FA15-220SxxY2N3 Series
Input Range: 85-305V ac / 120-430V dc.
Output Range: 5-24V.
Power: 15W.
Form Factor: 1”x2” compact PCB module.
Cooling Method: Convection.
Certifications: IEC/EN/UL 62368, CE, RoHS -

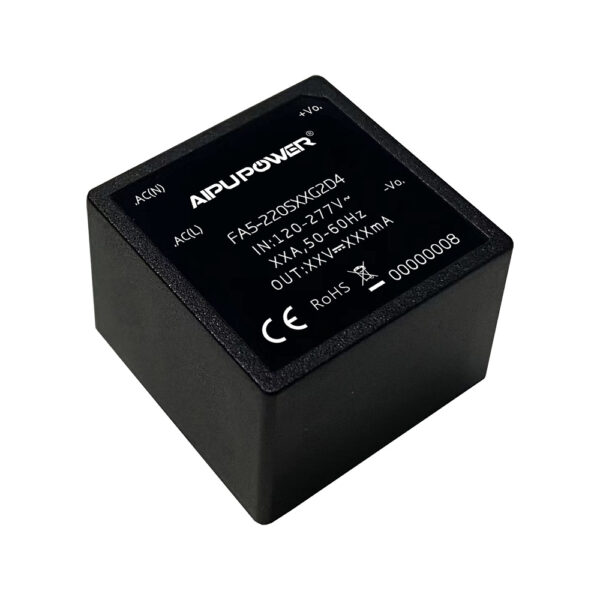

FA5-220SxxG2D4 Series
Input Range: 85-305V ac / 120-430V dc
Output Range: 3.3-24V
Power: 5W
Form Factor: PCB / wired / DIN-rail mount
Cooling Method: Convection
Certifications: IEC62368, UL62368, EN62368, CE, TUV
