EA1183 Series

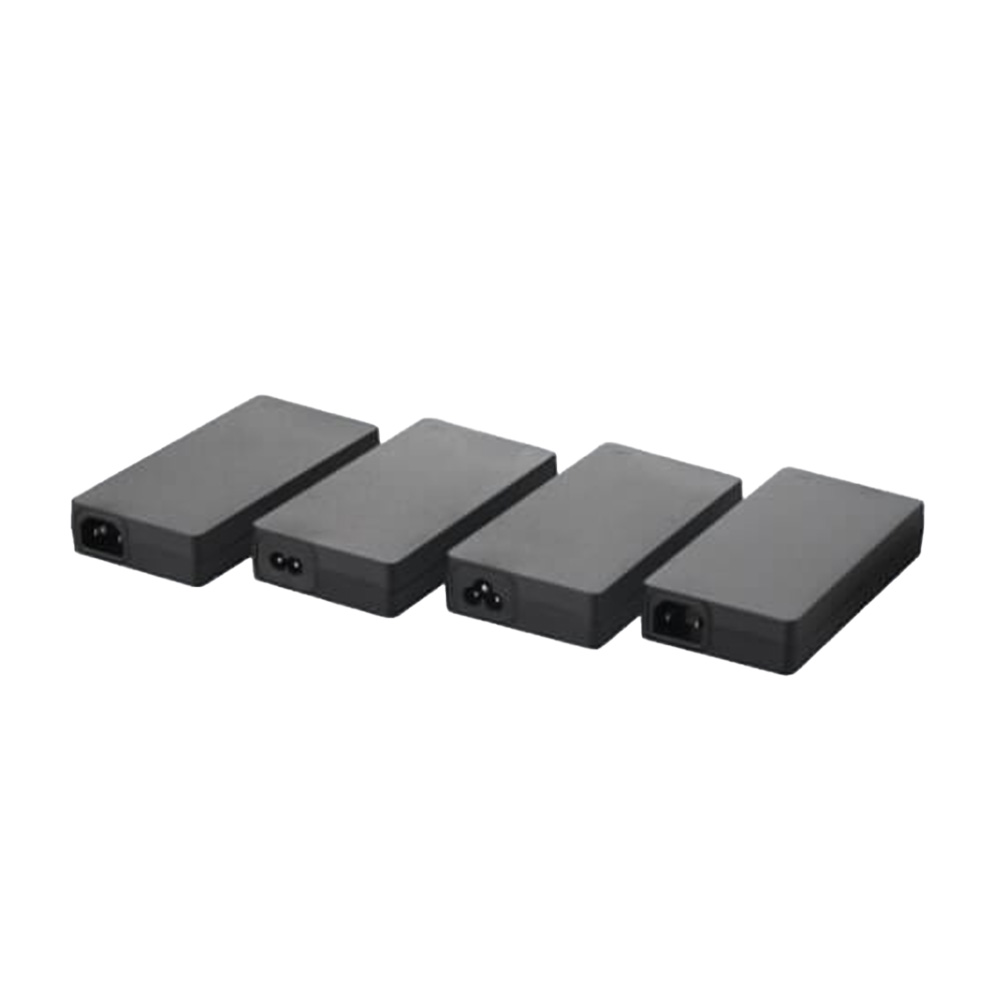

EA1183 Series from EDAC POWER, 180W desktop ac-dc power supply
External PSU with universal input, multiple output options, and high efficiency.
download the EA1183 Series data sheet
Access detailed specifications, performance data, and technical drawings for the EA1183 Series in our comprehensive datasheet.
Need a 3D drawing?
Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.
Stuck on specs? Let’s chat
We’re online and ready to chat.
APPLICATION
EA1183 Series delivers 180W from a 90-264V ac input with up to 92% efficiency. It provides single outputs from 12V to 56V and is available with Class I or Class II configurations. Features include low standby power <0.21W, high power density, and comprehensive protection circuits. Suitable for industrial, ITE, and instrumentation applications. Certified to IEC/EN/UL62368-1.
FEATURES
INDUSTRY
| Model | Input Voltage | Output Voltage | Power Rating |
|---|---|---|---|
| EA1183-120 | 90-264V ac | 12V | 180W |
| EA1183-150 | 90-264V ac | 15V | 180W |
| EA1183-190 | 90-264V ac | 19V | 180W |
| EA1183-240 | 90-264V ac | 24V | 180W |
| EA1183-360 | 90-264V ac | 36V | 180W |
| EA1183-480 | 90-264V ac | 48V | 180W |
| EA1183-560 | 90-264V ac | 56V | 180W |
