Industrial Computing > RPS631-H610

RPS631-H610

Processor: 14th/13th/12th Gen Intel® Core Processors
Memory: Up to 96GB
Form Factor: ATX
Supports: VGA, HDMI
Size: 305 x 244 x 38.9 mm
Operating Temperature -5°C to +65°C

Make an Enquiry

Email
This field is for validation purposes and should be left unchanged.
Product
First Name*
Last Name*
Email*
Company
Phone
City
Country*
Enquiry*
CAPTCHA

APPLICATION

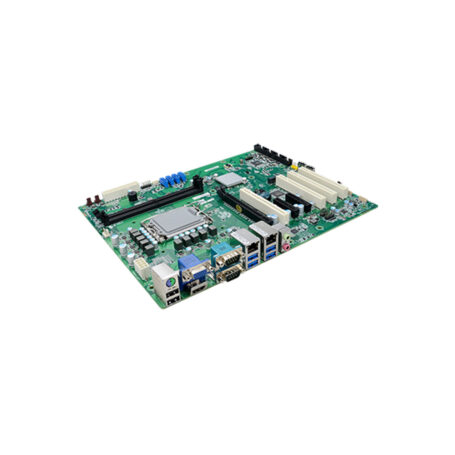

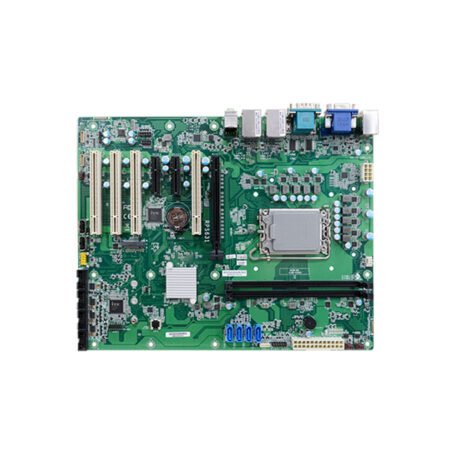

The RPS631-H610 from DFI is a full-sized ATX industrial motherboard engineered for 14th, 13th, and 12th Gen Intel® Core™ LGA1700 processors with support for up to 125W TDP. Featuring the Intel® H610 chipset, this platform supports dual DDR5 UDIMM slots up to 96GB and delivers high-speed performance for general-purpose and embedded computing applications.

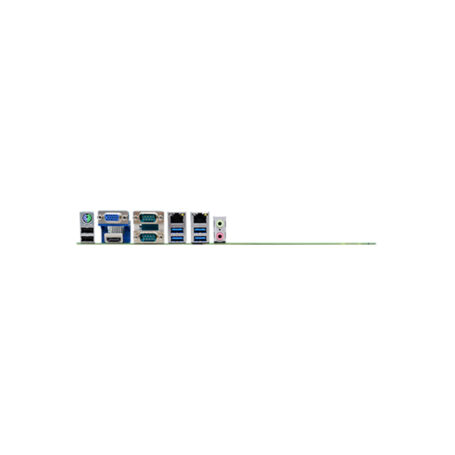

Designed with rich I/O flexibility, the RPS631-H610 includes dual LAN (Intel® 2.5GbE and 1GbE), dual display outputs via VGA and HDMI (up to 4K), six COM ports, four USB 3.2 Gen1, and six USB 2.0 ports. Expansion options include one PCIe Gen4 x16 slot, two PCIe Gen3 x4 (x2 lanes), four legacy PCI slots, and one M.2 M-key for NVMe storage. The board supports S/PDIF, 16-bit GPIO, watchdog timer, and TPM 2.0, making it well-suited for factory automation, machine vision, and control systems operating in environments up to 65°C.

feature list

Supports 14th/13th/12th Gen Intel® Core™ processors up to 125W TDP
Dual-channel DDR5 5600 MHz memory support up to 96GB
Multiple expansion slots: 1 PCIe Gen 4 x16, 2 PCIe Gen 3 x4, 4 PCI, 1 M.2 NVMe
Dual LAN: 1 Intel® 2.5GbE and 1 Intel® 1GbE
Supports dual display output via VGA and HDMI 2.0a (up to 4K)
Rich I/O: 4 USB 3.2 Gen1, 6 USB 2.0, 6 COM ports
Realtek ALC888S audio codec with line-out, mic-in, and optional line-in
Full hardware protections including watchdog timer, H/W monitor, case open
TPM 2.0 for secure hardware-based encryption
Optional extras: See datasheet

Downloads

Click on the link below for an instant download.

RPS631-H610 Datasheet
