Defence EMI Filter Modules for MIL-STD-461 Compliance
23rd June 2025Share This Post
Share This Post
Cincon, supplied by Relec Electronics, has just bolstered its power portfolio with the release of its MF10 and MF20 defence-grade EMI filter modules, offering engineers an elegant solution to a not-so-elegant problem: electromagnetic compatibility.
These new modules are designed specifically to help designers meet MIL-STD-461 (F & G) requirements, critical for any equipment deployed in harsh military or aerospace environments.
Why MIL-STD-461 Matters
If you’re in the defence space, you’ll know that electromagnetic compatibility (EMC) is essential. MIL-STD-461 defines the standards for:
- CE (Conducted Emissions) – What your equipment puts out on the power lines.
- CS (Conducted Susceptibility) – What it can take in from noisy power without failure.
- RE (Radiated Emissions) – The electromagnetic field it emits into the air.
- RS (Radiated Susceptibility) – The device’s sensitivity to external radiated electromagnetic interference.
In short: it’s about ensuring everything works together, in any conditions or location, without frying each other’s circuits.
The New MF Modules: Plug, Play, Pass

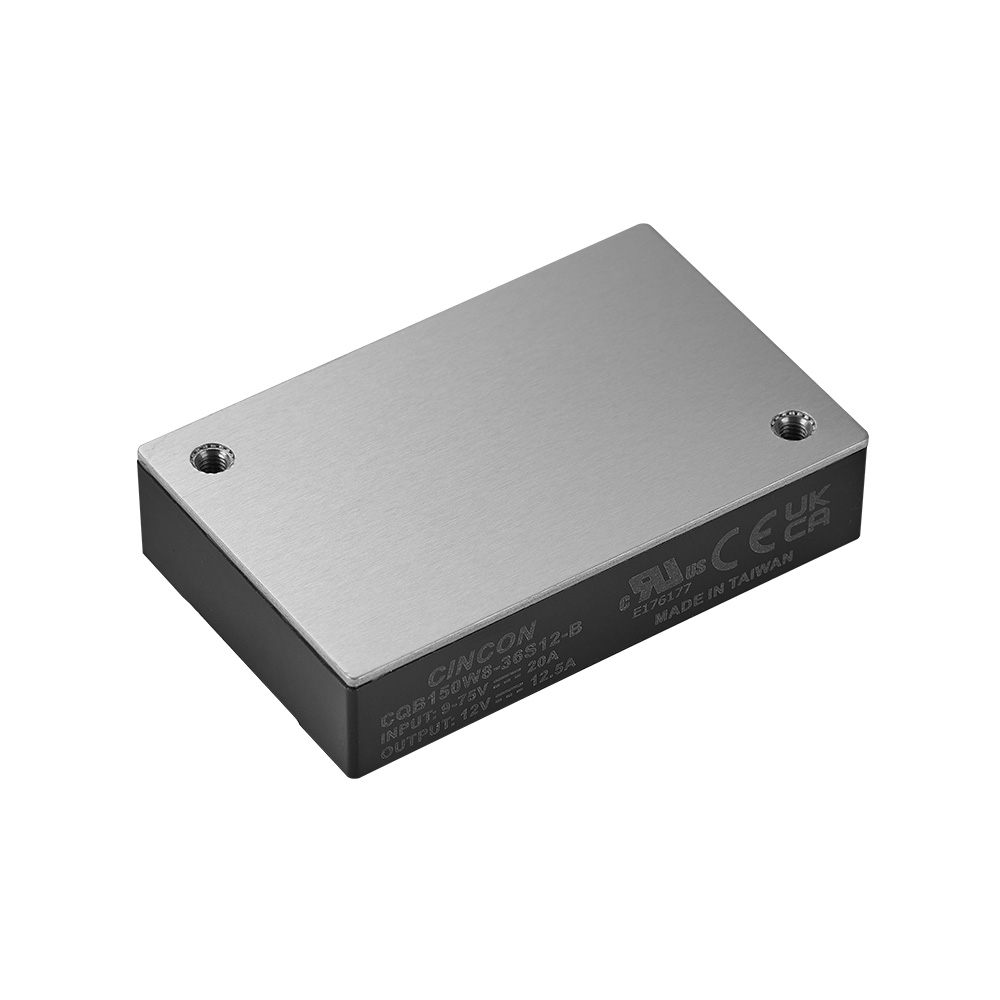

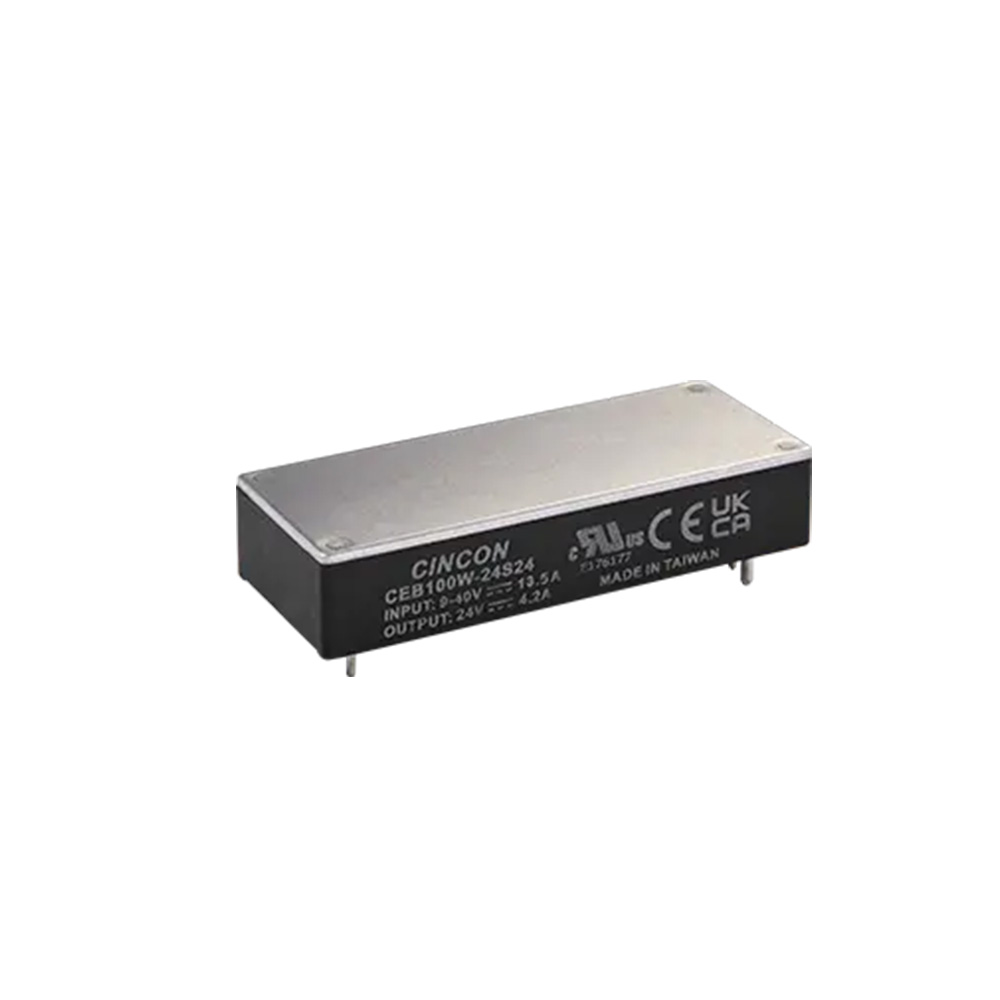

Cincon’s defence EMI filters, MF10D075P and MF20D075P, are designed to pair with their eighth-brick and quarter-brick DC-DC converters respectively, including models such as:
This plug-and-play approach reduces the need for bulky discrete filtering components (inductors, capacitors, beads), saving development time on EMC compliance while keeping your project compact, cost-effective, and compliant.
Test Case: MIL-STD-461, Conquered

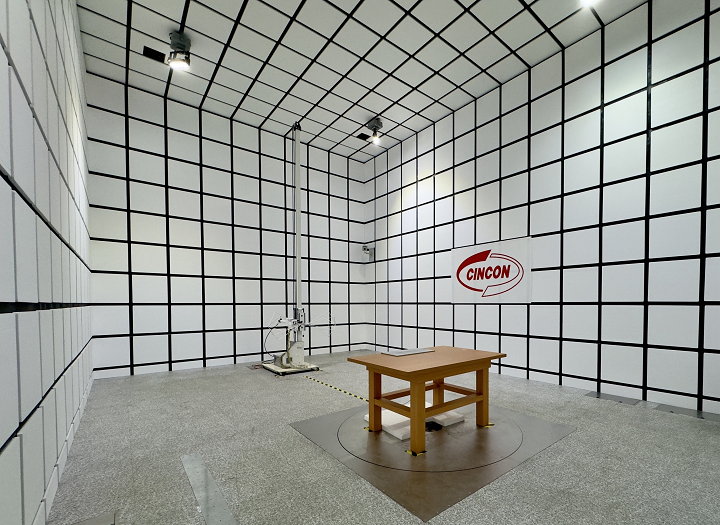

To demonstrate this, Cincon tested the MF series with all of the above bricks to CE102 of the MIL-STD-461 specification, achieving a pass for all models using their reference circuit and PCB design.
Built for Defence
These modules are ready for the extremes, with:
- Operating temperatures from -55°C to +110°C
- Industry standard heatsink & mounting options
- Shock & Vibration compliance to MIL-STD 810F
Perfect for avionics, ground vehicles, and any application where electromagnetic chaos is the norm.
Relec Electronics, as a long-time Cincon partner, we’re excited to offer these new defence and aerospace EMI filter modules to our customers. Whether you’re building for the skies, the ground, or anything in between, we’re here to help you navigate the EMI maze, with expert advice and products that meet the mission.
