Compact, High Efficiency
Cost-effective 1000 W AC-DC power supply for industrial and medical applications. The Advanced Energy SLB1000 delivers high efficiency (88% typical), compact 2.4” x 5.2” x 10.55” (61mm x 132mm x 268mm) design, and smart fan cooling for low acoustic noise.

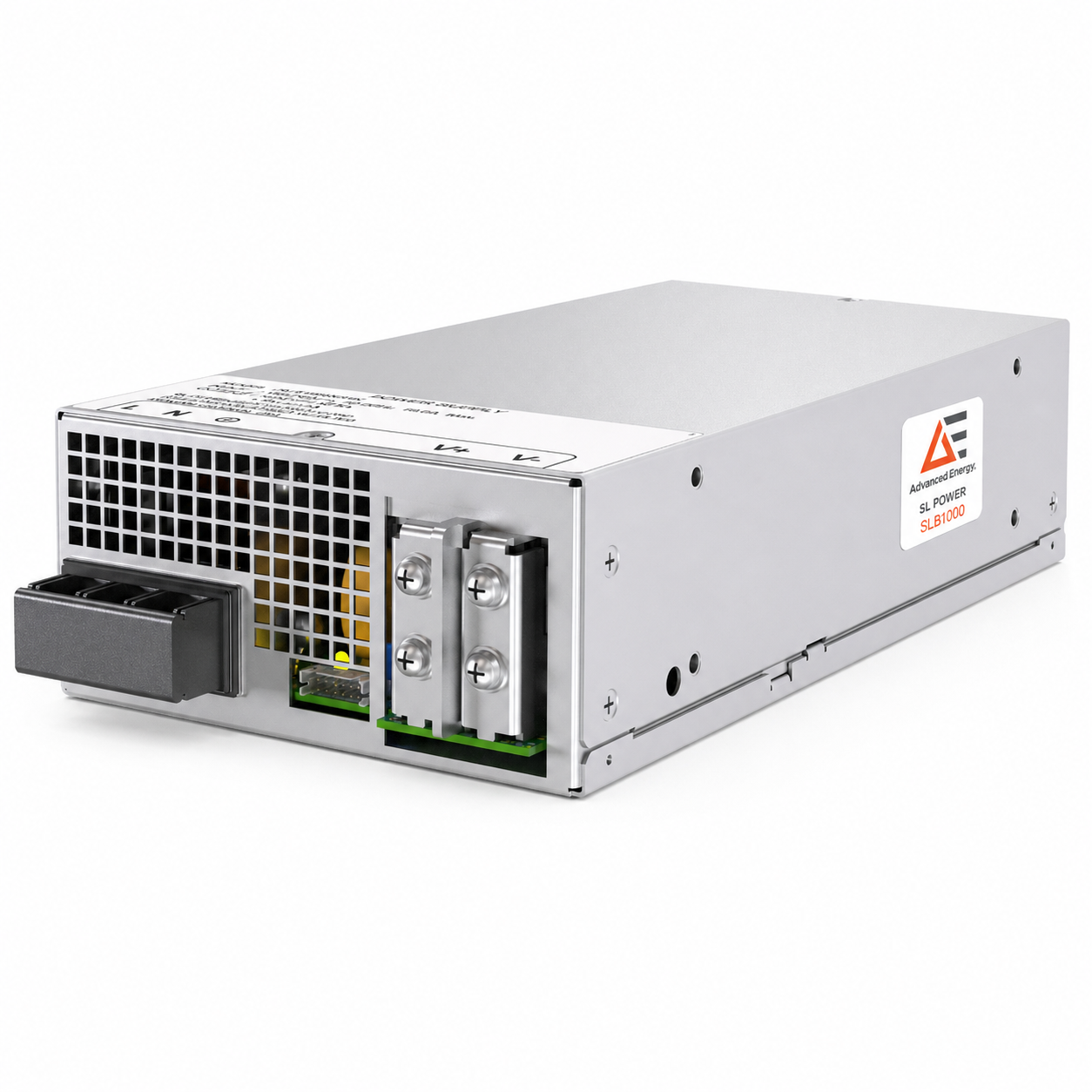

The Advanced Energy SLB1000 is a high-efficiency AC-DC enclosed power supply designed to meet demanding industrial and medical single-output requirements. Delivering up to 1000 W in a compact 2.4” x 5.2” x 10.55” footprint, it provides reliable, cost-effective power without compromise.
Utilising variable speed smart fans for self-contained thermal management, the SLB1000 maintains low acoustic noise while ensuring stable performance across a wide operating range. Output voltages from 12 Vdc to 48 Vdc, alongside a 5 V standby rail, support a broad range of system architectures.
key features
- 1000 W continuous output power
- Compact enclosed design: 2.4” x 5.2” x 10.55”
- Power density: 7.7 W/in³
- High efficiency: >85% typical
- Wide input range: 90–264 Vac
- Output range: 12–48 Vdc + 5 V standby
- Operating temperature: -20 °C to 70 °C (with derating)
- Variable speed smart fans for optimised thermal control
- Low acoustic noise operation
- ±5% voltage adjustment
applications
Designed for high power requirements across:
- Medical equipment (BF-rated applications)
- Telecom infrastructure
- Industrial systems
compliance & safety
- EMI: EN55011/32 Class B, CISPR Class B
- Industrial immunity: EN61000
- Medical EMC: IEC 60601-1-2 (4th Edition)
- Safety: UL/CSA 62368-1 & ANSI/AAMI ES60601-1 (Type BF)
- CE, CB Report, RoHS compliant
technical specifications
Power Output
1000 W output
Efficiency
High efficiency, >85% typical
Size
2.4” x 5.2” x 10.55”
Input Range
90 – 264 VAC (operating)
Output Voltages
12V to 48V (5VDC standby)
Protections
OVP, OCP, Short Circuit
Operating Altitude
20 degrees to 70 degrees
Delivering 1000 W in a compact, efficient platform, the SLB1000 is built for systems that demand performance without excess cost.
Explore the SLB1000 at relec.co.uk or speak to Relec to discuss your application requirements.
