WL053

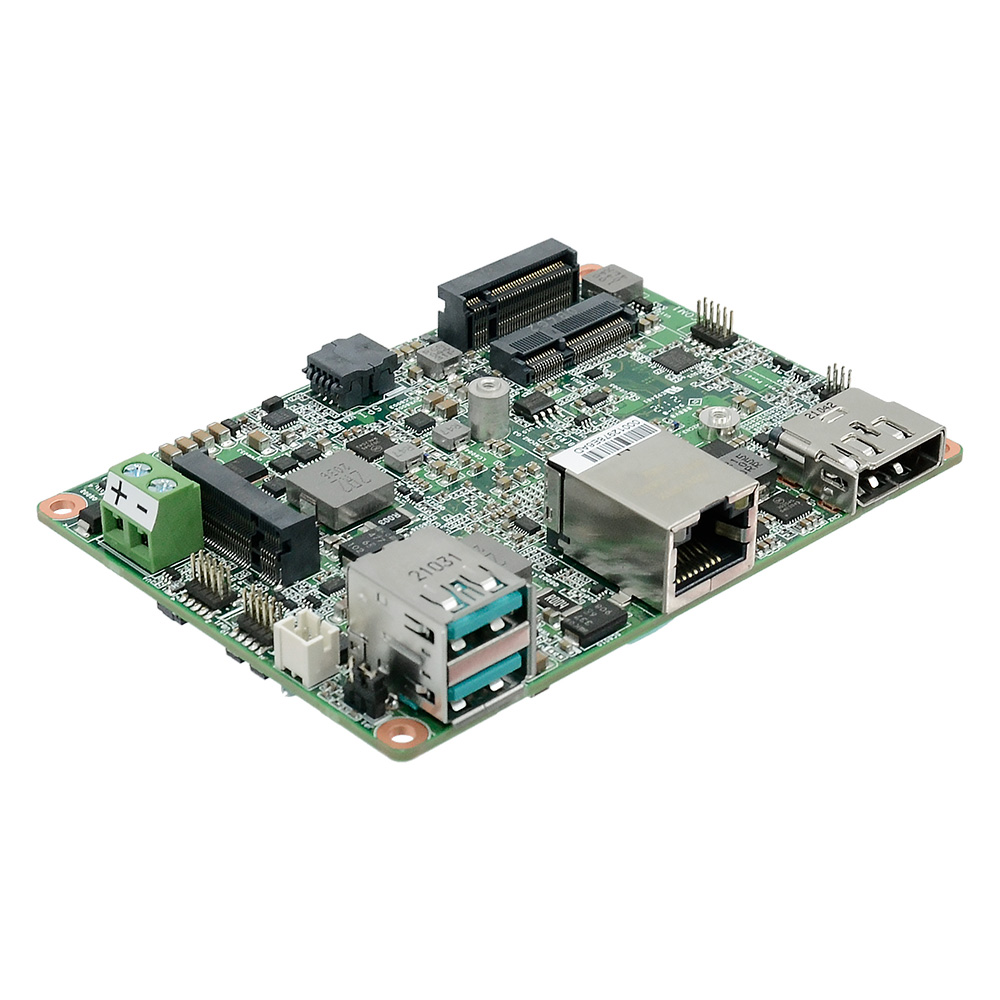

WL053 from DFI, a 2.5″ Pico-ITX single board computer powered by Intel Atom x6000E processors.
Compact yet capable, it’s built for embedded automation, IoT, and edge applications requiring fanless reliability.
download the WL053 data sheet
Access detailed specifications, performance data, and technical drawings for the WL053 in our comprehensive datasheet.
Need a 3D drawing?
Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.
Stuck on specs? Let’s chat
We’re online and ready to chat.
APPLICATION
The WL053 is a 2.5″ Pico-ITX motherboard based on Intel Atom x6000E, Celeron, and Pentium N/J Series processors (Elkhart Lake). It supports up to 16GB LPDDR4 memory onboard and features multiple display outputs, including HDMI, eDP, and LVDS for dual display configurations. With rich connectivity such as dual Intel Gigabit LAN, USB 3.2, SATA, and COM ports, it also includes M.2 and Mini PCIe expansion slots for wireless modules or storage. Its fanless operation, 12V dc input, and -20°C to 70°C temperature range make it a dependable platform for industrial automation, IoT gateways, and HMI systems.
