1. What output voltages are available for the LPP200?

The LPP200 is available with a single regulated output of 12V, 24V or 48V DC. The appropriate model can be selected to match the voltage and current requirements of your equipment.

2. Does the LPP200 deliver 200W using convection cooling?

The LPP200 provides up to 120W with natural convection cooling. To achieve its full 200W output rating, the power supply requires 400 LFM forced airflow.

3. Is the LPP200 suitable for medical equipment?

Yes. The LPP200 carries medical safety approvals and provides 4400Vac input-to-output isolation with 2 MOPP protection. Its low leakage current also makes it suitable for Type BF medical applications.

4. What is the operating temperature range of the LPP200?

The LPP200 operates from -20°C to +70°C. Output power must be derated at higher ambient temperatures, reaching 50% of the rated load at 70°C.

5. What applications are suitable for the LPP200 power supply?

The LPP200 is suited to patient monitoring systems, diagnostic devices, laboratory instruments, industrial control equipment, test and measurement systems and other applications where space, reliability and electrical safety are important.

LPP200

The LPP200 200W medical power supply combines high power density, dependable performance and medical-grade safety in an ultra-low-profile package. Operating from an 85–264Vac input, the series provides 120W through natural convection or up to 200W with 400 LFM forced airflow. Available with 12V, 24V and 48V outputs, the LPP200 delivers up to 90% typical efficiency and includes active power factor correction, a 12V fan output and ±5% output adjustment.

Designed for medical, industrial, test and measurement applications, the LPP200 provides 4400Vac input-to-output isolation and 2 MOPP protection, making it suitable for Type BF medical equipment. Built-in overload, overvoltage, short-circuit and overtemperature protection help ensure safe and reliable operation. The power supply operates from -20°C to +70°C with derating and has an MTBF exceeding 500,000 hours.

Add to Quote

Add to Compare

Category: AC-DC Power Supplies, Chassis Mount

Brands: Advanced Energy

download the LPP200 data sheet

Access detailed specifications, performance data, and technical drawings for the LPP200 in our comprehensive datasheet.

View downloads

Need a 3D drawing?

Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.

request a drawing

Stuck on specs? Let’s chat

We’re online and ready to chat.

Open chat

Advanced Energy LPP200

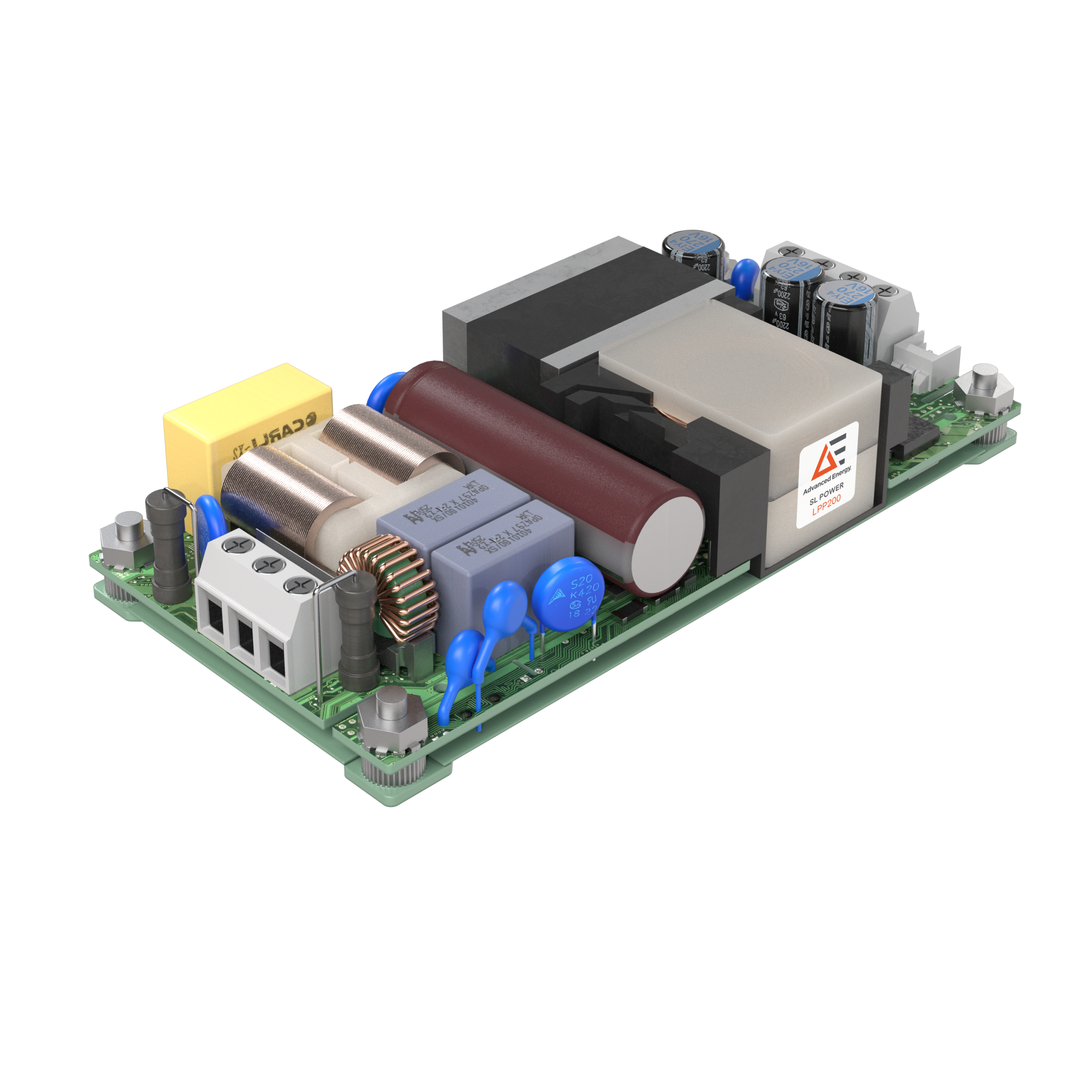

The Advanced Energy LPP200 is a compact, low-profile AC-DC power supply designed for space-constrained medical and industrial equipment. It delivers up to 200W with forced-air cooling and is available with 12V, 24V or 48V single outputs. Its open-frame 2″ × 4″ footprint, 0.75″ height and medical safety approvals make it ideal for applications requiring dependable power in a compact format.
