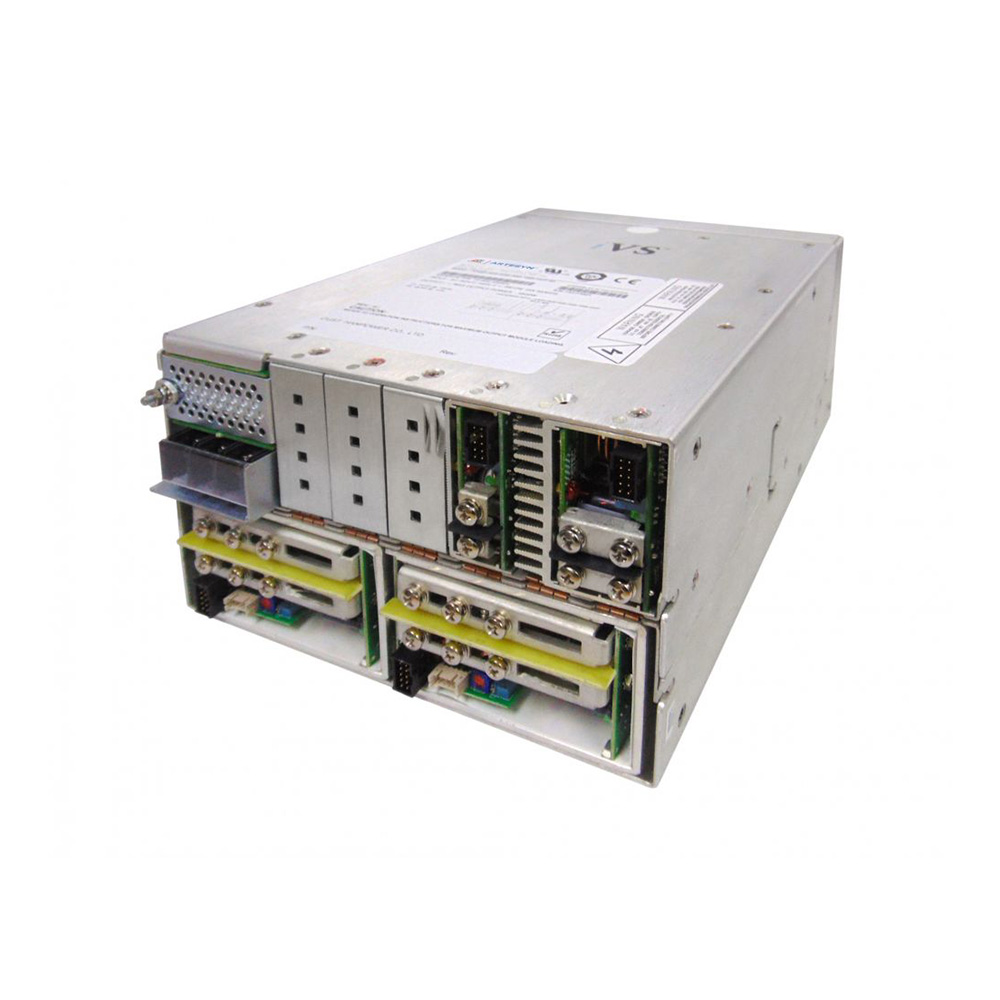

iVS Series
iVS Series from Advanced Energy, configurable AC-DC power supplies.
Flexible, modular and intelligent, the iVS Series provides up to 4920W with digital control and medical approvals.
download the iVS Series data sheet
Access detailed specifications, performance data, and technical drawings for the iVS Series in our comprehensive datasheet.
Need a 3D drawing?
Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.
Stuck on specs? Let’s chat
We’re online and ready to chat.
APPLICATION
The iVS Series of configurable ac-dc power supplies offers up to 4920W with universal ac input (85-264V single-phase, 170-264V three-phase, or 342-480V high-line). Up to 24 isolated outputs can be configured from 25 standard voltages between 2V and 60V. Featuring intelligent I2C digital control, programmable sequencing, and active current share, iVS supports medical (EN60601), industrial and test applications. With efficiencies up to 85% and power densities to 12W/in³, the platform uses standard iMP modules with single, dual and triple outputs from 36W to 1500W. Certified to UL/EN62368-1, EN60601-1, CSA, CE and UKCA.
