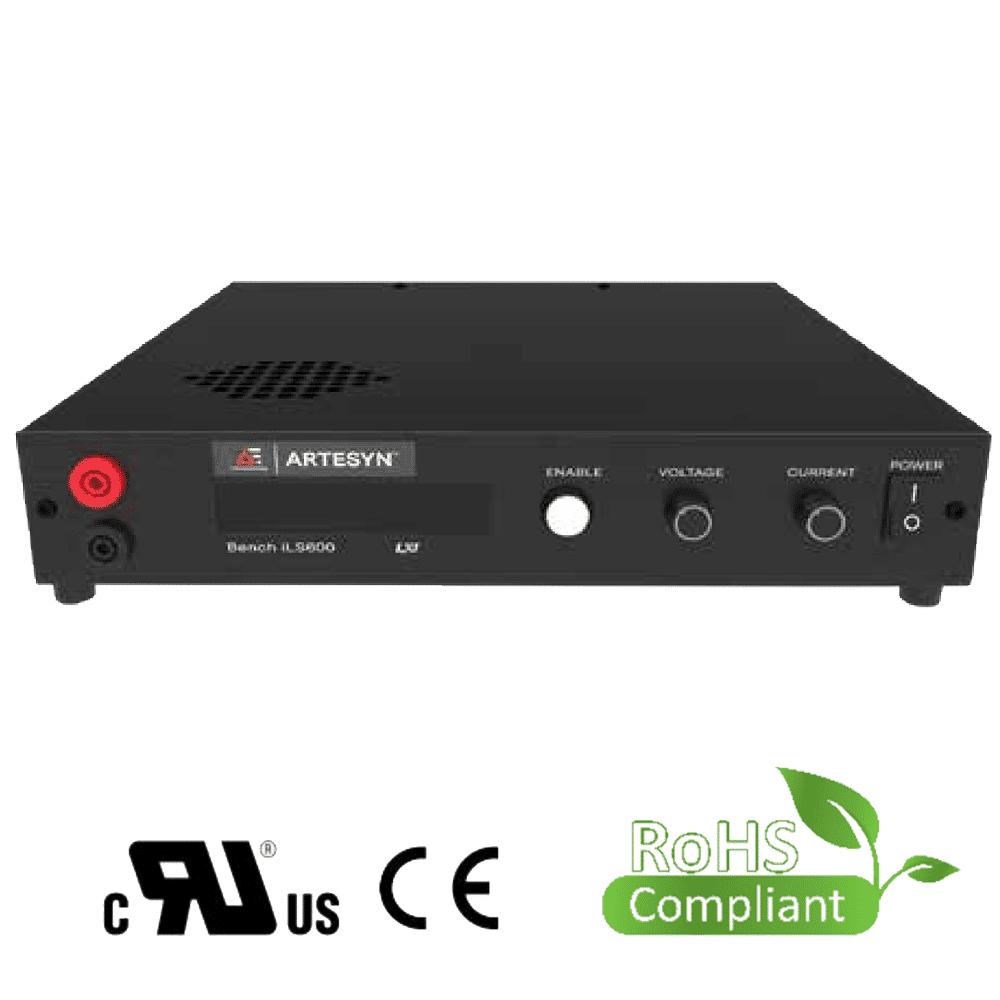

iLS600 / iLS600-R Series
iLS600 / iLS600-R Series from Advanced Energy, 600W programmable dc power supplies.
Compact 1U bench or rackmount unit with Ethernet/USB control, LxI certification and high accuracy.
download the iLS600 / iLS600-R Series data sheet
Access detailed specifications, performance data, and technical drawings for the iLS600 / iLS600-R Series in our comprehensive datasheet.
Need a 3D drawing?
Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.
Stuck on specs? Let’s chat
We’re online and ready to chat.
APPLICATION
The iLS600 / iLS600-R Series delivers 600W with single outputs from 30V to 400V, providing up to 33A current. With 12-bit D/A and A/D converters, it ensures accurate reporting of voltage and current. Both series provide rotary controls for fine or rapid adjustment, remote sense, full OVP/OCP/OPP protections, and series/parallel operation. Interfaces include USB, Ethernet, analogue and LxI for remote programming, with LabVIEW drivers. The iLS600 has front ports, while iLS600-R has rear ports. Applications include laboratory, ATE, R&D and test systems. Certified to UL60950-1, UL62368-1 and CAN/CSA equivalents.
