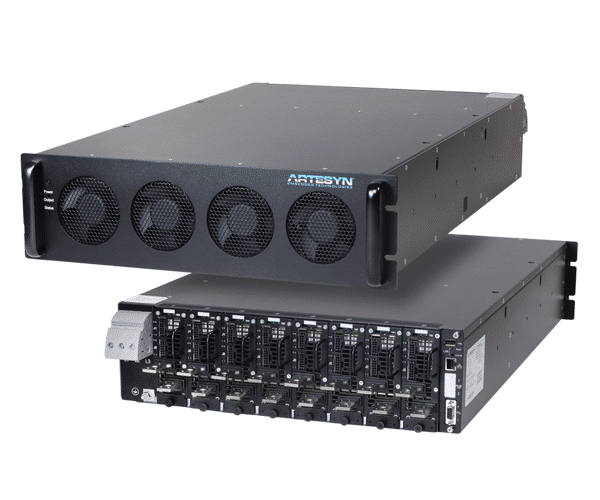

iHP Series
iHP Series from Advanced Energy, modular high power ac-dc systems up to 24kW.
Configurable, intelligent and digitally controlled with medical and industrial approvals.
download the iHP Series data sheet
Access detailed specifications, performance data, and technical drawings for the iHP Series in our comprehensive datasheet.
Need a 3D drawing?
Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.
Stuck on specs? Let’s chat
We’re online and ready to chat.
APPLICATION
The iHP Series delivers up to 24kW per 3U rack and 144kW in a cabinet, with input options from 180-264V ac single or 342-528V 3-phase. It supports up to 8 outputs using plug-in modules from 12V to 300V with programmable voltage or current modes. Applications include medical, industrial, lighting, horticulture and semiconductor equipment. Features include digital and analogue control, PMBus-based communication, fast current slew, series or parallel connection, and high efficiency over 94%. Certified to UL62368-1, EN62368-1, IEC60601-1 and SEMI F47.
FEATURES
INDUSTRY
| Model | Input Voltage | Output Voltage | Power Rating |
|---|---|---|---|
| iHP12L1A | 180-264V ac 1-phase | 12kW | 12kW |
| iHP12L3A | 180-264V ac 3-phase | 12kW | 12kW |
| iHP12H3A | 342-528V ac 3-phase | 12kW | 12kW |
| iHP24L3A | 180-264V ac 3-phase | 24kW | 24kW |
| iHP24H3A | 342-528V ac 3-phase | 24kW | 24kW |
| iHP24C3A | 540-660V ac 3-phase | 24kW | 24kW |
| iHP24SH3A | 342-528V ac 3-phase | 24kW Short Rack | 24kW |
| iHP24SL3A | 180-264V ac 3-phase | 24kW Short Rack | 24kW |
| SL Module | N/a | 12V | 2.4kW |
| SQ Module | N/a | 24V | 2.88kW |
| ST Module | N/a | 32V | 3kW |
| SW Module | N/a | 48V | 3kW |
| S8 Module | N/a | 80V | 3kW |
| S1 Module | N/a | 125V | 3kW |
| SA Module | N/a | 200V | 3kW |
| S2 Module | N/a | 250V | 3kW |
| TW Module | N/a | 50V | 12kW |
| T3 Module | N/a | 300V | 12kW |
