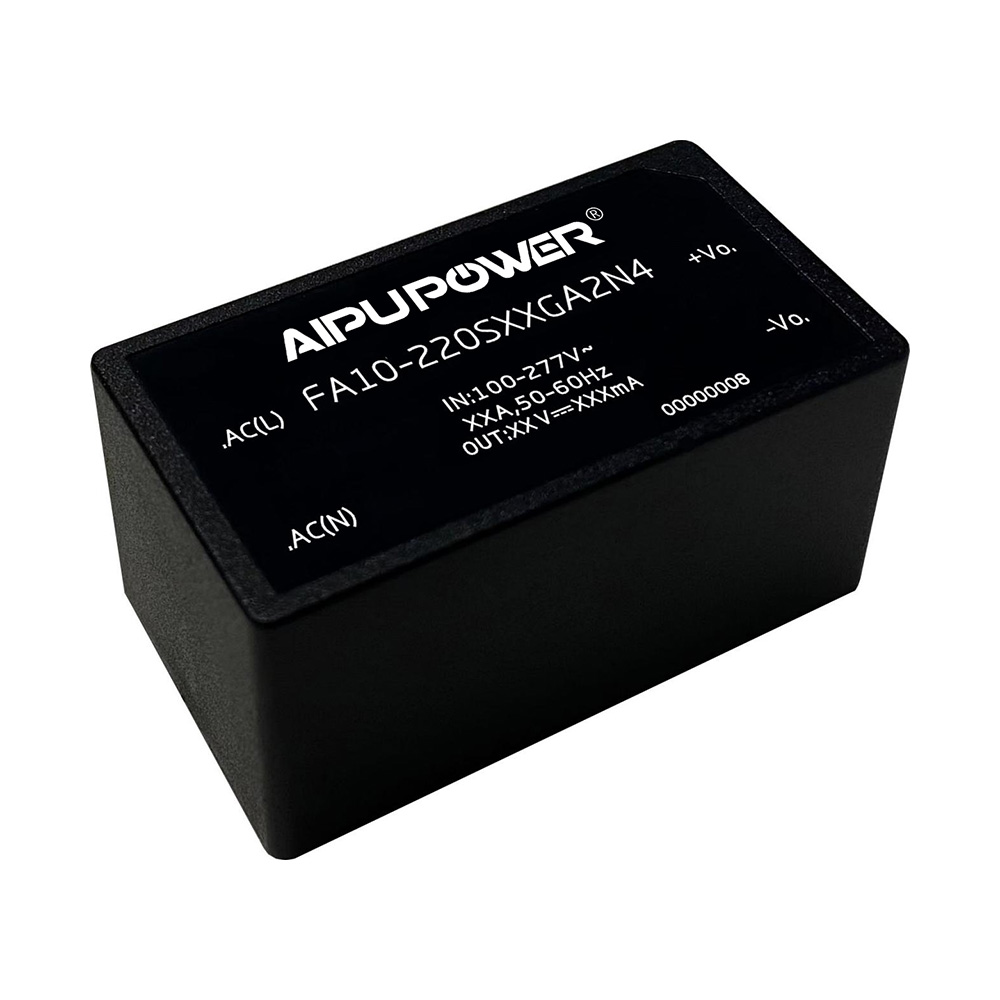

FA10-220SxxGA2N4 Series
FA10-220SxxGA2N4 Series from Aipu Power, 10W ac-dc converters.
Compact PCB modules with wide input range, high isolation and protections for industrial and smart home use.
download the FA10-220SxxGA2N4 Series data sheet
Access detailed specifications, performance data, and technical drawings for the FA10-220SxxGA2N4 Series in our comprehensive datasheet.
Need a 3D drawing?
Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.
Stuck on specs? Let’s chat
We’re online and ready to chat.
FA10-220SxxGA2N4 Series provides up to 10W from a universal 85-305V ac or 120-430V dc input, with typical efficiency up to 84% and no-load power below 0.3W. These compact PCB-mount modules feature reinforced 4000Vac isolation, low ripple and protections against short circuit and over current. Operating from -40°C to +85°C and supporting up to 300,000h MTBF, the series is suited for instrumentation, control, smart home and industrial electronics. Optional -T and -TS versions allow chassis or DIN-rail mounting. Certified to IEC/UL/EN62368 with CE and RoHS compliance.
