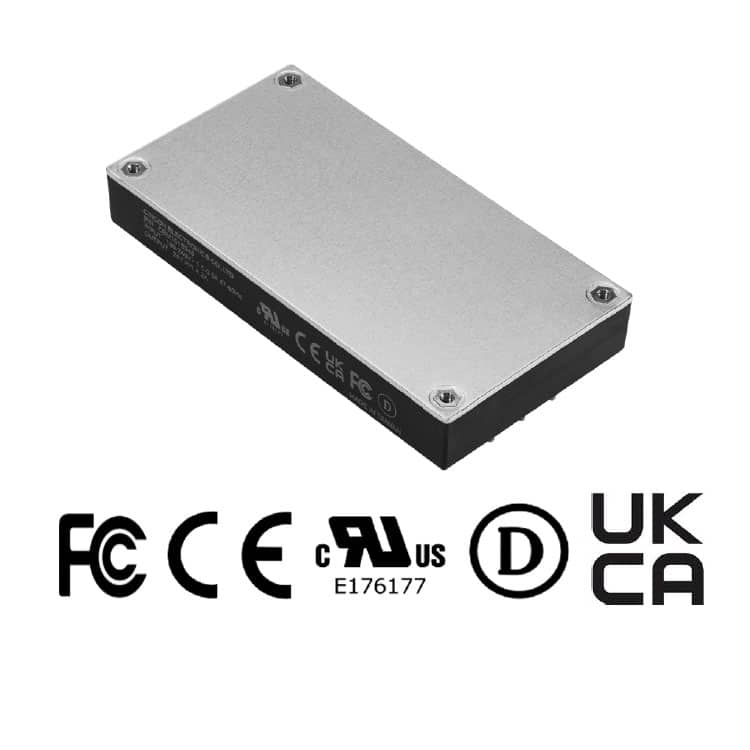

CBM101S Series
CBM101S Series from Cincon, 100W ac-dc full-brick converters with PFC.
Ultra-low 17mm profile, efficiency up to 94.5% and no external heatsink required.
download the CBM101S Series data sheet
Access detailed specifications, performance data, and technical drawings for the CBM101S Series in our comprehensive datasheet.
Need a 3D drawing?
Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.
Stuck on specs? Let’s chat
We’re online and ready to chat.
APPLICATION
The CBM101S Series delivers 100W continuous output with universal 90-264V ac input and PFC, achieving peak efficiency up to 94.5%. Packaged in a compact full-brick (116.8 x 61.0 x 17.0 mm), it operates fanless at full load, supports peak power up to 120W for 5s, and offers protections against short circuit, over current, over voltage and over temperature. Applications include industrial, ITE, communications and distributed power systems. Certified to IEC/EN/UL 62368-1, EN55032 Class B and CISPR/FCC Class B.
