CFM100M Series

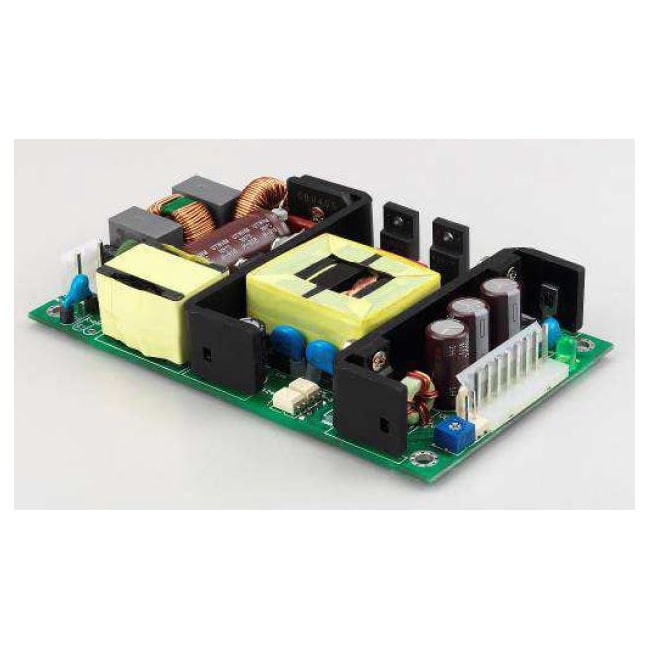

CFM100M Series from Cincon, 100W medical AC-DC power supply
Compact open-frame design with high efficiency, 2 MOPP isolation and medical safety approvals.
download the CFM100M Series data sheet
Access detailed specifications, performance data, and technical drawings for the CFM100M Series in our comprehensive datasheet.
Need a 3D drawing?
Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.
Stuck on specs? Let’s chat
We’re online and ready to chat.
APPLICATION
The CFM100M Series is a 100W medical ac-dc power supply with universal 80-264V ac input and peak efficiency up to 94%. It provides single outputs from 12V to 48V, with options for open-frame, PCB mount, chassis mount and DIN-rail. Designed with low leakage current (<100µA), Class I and Class II options, and 2 x MOPP isolation, it is ideal for medical, home healthcare, and industrial equipment. Certified to IEC/EN/UL60601-1, IEC/EN/UL62368-1 and EN60335-1.
FEATURES
INDUSTRY
| Model | Input Voltage | Output Voltage | Power Rating |
|---|---|---|---|
| CFM100M050 | 80-264V ac | 5V | 100W |
| CFM100M120 | 80-264V ac | 12V | 100W |
| CFM100M150 | 80-264V ac | 15V | 100W |
| CFM100M180 | 80-264V ac | 18V | 100W |
| CFM100M240 | 80-264V ac | 24V | 100W |
| CFM100M280 | 80-264V ac | 28V | 100W |
| CFM100M360 | 80-264V ac | 36V | 100W |
| CFM100M480 | 80-264V ac | 48V | 100W |
