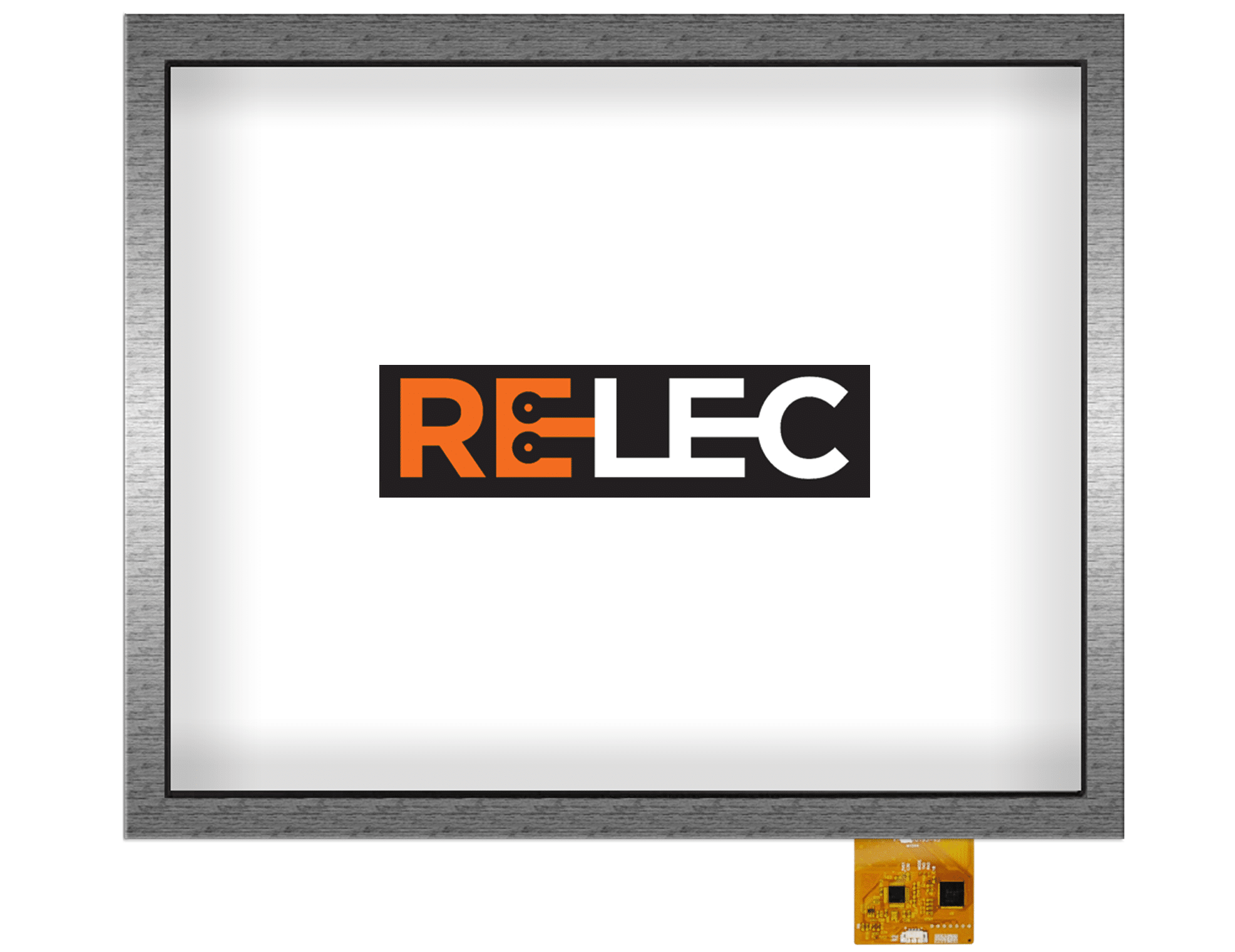

17″ SXGA IPS TFT LCD Display
The 17″ SXGA IPS TFT LCD Display from FutureLabs, model FLD-170KTL12PC001#00, a high-quality industrial display module with integrated RockTouch PCAP control and full-viewing IPS technology.
Engineered for reliability and clarity, it offers 1280 x 1024 resolution, 350 cd/m² brightness, and long operational life for industrial, marine, and professional applications.
download the 17″ SXGA IPS TFT LCD Display data sheet
Access detailed specifications, performance data, and technical drawings for the 17″ SXGA IPS TFT LCD Display in our comprehensive datasheet.
Need a 3D drawing?
Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.
Stuck on specs? Let’s chat
We’re online and ready to chat.
APPLICATION
The 17″ SXGA IPS TFT LCD Display provides a 1280 x 1024 native resolution with IPS full viewing angles and anti-glare surface treatment. Featuring LVDS 2-channel 30-pin input, it supports 16.7M colours with a 1000:1 contrast ratio. Operating on 5V logic and 12V backlight supply, it achieves 350 cd/m² brightness and a 50,000-hour LED lifetime. Integrated RockTouch PCAP offers USB and I²C interfaces for precision touch control. Designed for -20°C to +70°C operation, it is ideal for demanding industrial and control applications.
