AC-DC Power Supplies
Showing 1–16 of 228 results
-
ACB-3000 Series
Input Voltage: 184-276 V ac
Output Voltage: 230 V ac
Power Rating: Up to 4.8 kVA
Form Factor: Compact module
Cooling Method: Natural convection
Certifications: EN50155, EN50121-4, EN45545-2, IEC62368-1 -
ACD-15 ORing Modules
Input Range: 24V dc or 48V dc
Output Range: 24V dc or 48V dc
Power: Up to 720W
Form Factor: DIN-rail module
Cooling Method: Convection
Certifications: EN50155, EN50121-3-2, EN45545-2, IEC/EN60950-1 -
AD-1500-HV Series
Input Range: 90-264V ac
Output Range: 120 – 400V
Power: 1500W
Form Factor: Chassis Mount
Cooling Method: Fan cooled
Certifications: IEC/EN/UL62368-1 -
AD-1500-LV Series
Input Range: 90-264V ac / 127-370V dc
Output Range: 12-60V
Power: 1500W
Form Factor: Chassis Mount
Cooling Method: Fan cooled
Certifications: IEC/EN/UL62368-1 -
AE 800 Series
Input Range: 85-264V ac
Output Range: 12-48V
Power: 800W
Form Factor: 1U enclosed, 254 x 127 x 63.5 mm
Cooling Method: Forced air with variable speed fan
Certifications: IEC/UL/EN62368-1, CE, RoHS -
AE-1500 Series
Input Range: 85-264V ac
Output Range: 12-48V
Power: 1500W
Form Factor: 1U enclosed, 280 x 127 x 63.5 mm
Cooling Method: Forced air with variable fan
Certifications: IEC/UL/EN62368-1, CE, RoHS -
AEA1000F Series
Input Range: 85-264V ac.
Output Range: 24-48V.
Power: 1000-1008W.
Form Factor: Enclosed 1U.
Cooling Method: Forced air .
Certifications: UL62368-1, EN62368-1, ANSI/AAMI ES60601-1, EN60601-1 -
AEA600F Series
Input Range: 85-264V ac.
Output Range: 24-48V.
Power: 600-604.8W.
Form Factor: Enclosed 1U.
Cooling Method: Forced air .
Certifications: UL62368-1, EN62368-1, ANSI/AAMI ES60601-1, EN60601-1 -

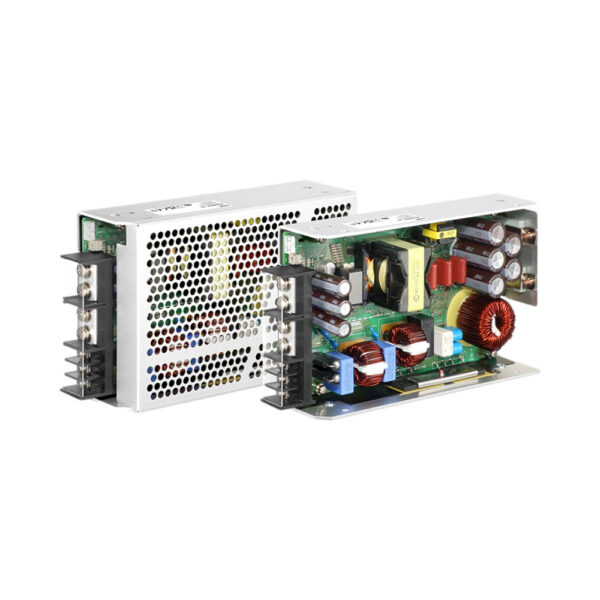

AEA800F Series
Input Range: 85-264V ac.
Output Range: 24-48V.
Power: 800-808W.
Form Factor: Enclosed 1U.
Cooling Method: Forced air .
Certifications: UL62368-1, EN62368-1, ANSI/AAMI ES60601-1, EN60601-1 -
AEK-3000 Series
Input Range: 90-264V ac
Output Range: 12-60V
Power: 3000W
Form Factor: 1U enclosed, 280 x 127 x 63.5 mm
Cooling Method: Forced air with variable fan
Certifications: IEC/UL/EN62368-1, CE, RoHS -
AEK-3000-HV Series
Input Range: 90-264V ac / 127-370V dc
Output Range: 150-400V
Power: 3000W
Form Factor: Enclosed programmable supply
Cooling Method: Fan cooled
Certifications: EN62368-1, UL62368-1 -
AIF04ZPFC Series
Input Range: 85-264V ac / 120-370V dc.
Output Range: 380-393V dc.
Power: 1600W.
Form Factor: Full-brick module.
Cooling Method: Baseplate conduction.
Certifications: UL62368, cUL62368, TUV EN62368, UKCA -
AIF06ZPFC Series
Input Range: 85-264V ac.
Output Range: 330-400V dc adjustable.
Power: 1400-2400W.
Form Factor: Full-brick module.
Cooling Method: Baseplate conduction.
Certifications: UL62368-1, CSA 62368-1, EN62368-1 -
AIQ00ZPFC Series
Input Range: 100-122V ac .
Output Range: 393V dc .
Power: 75W.
Form Factor: Quarter-brick module.
Cooling Method: Baseplate conduction.
Certifications: UL/cUL 60950, TUV EN60950 -
AIT00ZPFC Series
Input Range: 100-122V ac .
Output Range: 393V dc .
Power: 150W.
Form Factor: Three-quarter-brick module.
Cooling Method: Baseplate conduction.
Certifications: UL/cUL 60950, TUV EN60950 -
AIT02ZPFC Series
Input Range: 85-264V ac .
Output Range: 393V dc .
Power: 720W.
Form Factor: Three-quarter-brick module.
Cooling Method: Baseplate conduction.
Certifications: UL/cUL 60950, TUV EN60950
