APPLICATION

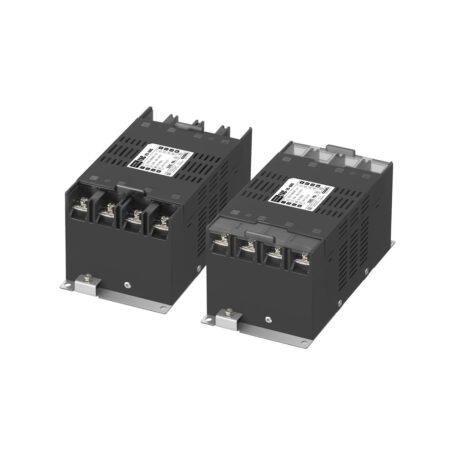

The YAC series is a compact single-stage EMI filter, designed for three-phase four-wire systems at 500/289 VAC. It offers effective noise suppression from 150kHz to 1MHz, making it ideal for high-power office equipment and energy storage systems.
This model supports a rated current of 25A with a voltage range up to 528/305 VAC. It features a test voltage of 2,800VDC, isolation resistance of 500 VDC 5MΩ, and low DC resistance of 15mΩ max. Leakage current is 10.7mA typical and 55mA max under worst-case conditions.
Certified to UL60939, CSA C22.2 No. 8, and EN60939, the YAC-25-685 ensures compliance and safety up to 3,000 meters altitude. It is well-suited for applications requiring compact, reliable EMI filtering in demanding electrical environments.
feature list
Three-Phase Four-Wire System EMI/EMC Filter
Suitable for 150kHz to 1MHz conduction noise reduction
High rated voltage: 500/289 VAC (up to 528/305 VAC max)
Wide rated current options: 25A, 36A, 64A, 80A
Low DC resistance values for improved efficiency
Wide operating temperature range: -40 to +85°C
Certified safety standards: UL60939, CSA C22.2 No. 8, EN60939
Rugged mechanical performance
