Power > VCCS300M Series
VCCS300S / VCCS300M
VCCS300S / VCCS300M
VCCS300S / VCCS300M
VCCS300S / VCCS300M
VCCS300S / VCCS300M
VCCS300S / VCCS300M
VCCS300S / VCCS300M
VCCS300S / VCCS300M

VCCS300M Series

Input: 85-264Vac
Outputs: 12 to 56Vdc
Power: 300 Watt
Tamb: -40°C to +70°C
Dims: 101.3 x 50.8 x 40.2 mm
IEC/UL60601-1-2 Edition 4 EMC, IEC/UL60601-1 Edition 3.1, MIL-STD Approved
5 Year warranty

Make an enquiry
X

Make an Enquiry

  • This field is for validation purposes and should be left unchanged.
have a question? Contact us now

APPLICATION

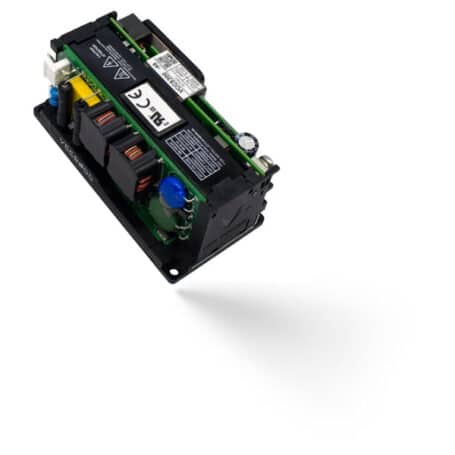

The VCCS300M series embodies the forefront of conduction-cooled power supplies, quietly providing 300 Watts of power within a sleek 4 x 2 x 1.61-inch package.

Specifically tailored for medical applications, it stands as an ultimate solution, boasting high efficiency and BF-rated, leading-edge technology with the flexibility of Class I or II installation.

Designed with a commitment to reliability, the VCCS300M series is medically approved and produced in redundant, minimum-touch manufacturing locations, ensuring a steadfast continuity of supply.

The VCCS300M series is expertly crafted to meet the unique demands of the medical field, finding applications across a wide spectrum of devices and environments. From powering Ventilators, Mobile Applications, and Infusion pumps to energizing Respirators, Medical Displays, and Endoscopes, its adaptability is evident.

MODEL NUMBERINPUT RANGEOUTPUTPOWER
VCCS300M-1285-264VAC12V300W
VCCS300M-1585-264VAC15V300W
VCCS300M-2485-264VAC24V300W
VCCS300M-2885-264VAC28V300W
VCCS300M-4885-264VAC48V300W
VCCS300M-5685-264VAC56V300W

Downloads

Click on the link below for an instant download.

  • VCCS300M Series Datasheet
  • VCCS300M User Manual
