APPLICATION

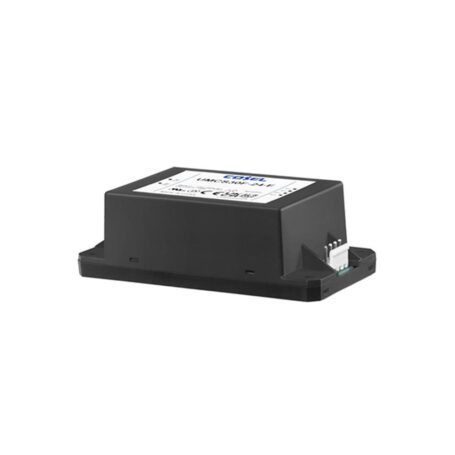

The UMCS30F series is a compact and efficient AC-DC power supply designed for global voltage compatibility and medical-grade safety. Operating from a wide input range of AC85–264V at 50/60Hz, it offers regulated outputs of 5V, 12V, 24V, or 48V, with power ratings up to 31.2W depending on the model. With high typical efficiencies up to 89% and low leakage and touch current, it ensures safe and reliable operation even in sensitive environments.
This series includes essential protection features such as automatic recovery overcurrent protection and robust overvoltage protection across all models. It’s built for isolation performance (4,000VAC) and 2MOPP compliance, making it ideal for medical and industrial use. The UMCS30F also meets a wide range of EMC and safety standards including UL62368-1, EN60601-1 3rd edition, and FCC Part 15-B.
With convection cooling, vibration and impact resistance, and operation over a wide temperature range from -20°C to +70°C, the UMCS30F series is well-suited for demanding applications across healthcare, laboratory, test instrumentation, and compact industrial systems.
feature list
Wide AC input voltage range of 85–264V with 50/60Hz compatibility
High efficiency up to 89% (typical at 230V input)
Overcurrent and overvoltage protection with automatic recovery
Low ripple noise (150 mVp-p max at full load, 20MHz bandwidth)
Isolation: 4000VAC between input and output with 2MOPP medical-grade rating
Convection cooling
Certified for UL62368-1, EN60601-1 (medical grade), and EMC standards
5-year warranty
| MODEL NUMBER | INPUT RANGE | OUTPUT | POWER |
|---|---|---|---|
| UMCS30F-5-E | 85 -264VAC | 5V | 15W |
| UMCS30F-12-E | 85 -264VAC | 12V | 30W |
| UMCS30F-24-E | 85 -264VAC | 24V | 31.2W |
| UMCS30F-48-E | 85 -264VAC | 48V | 31.2W |
