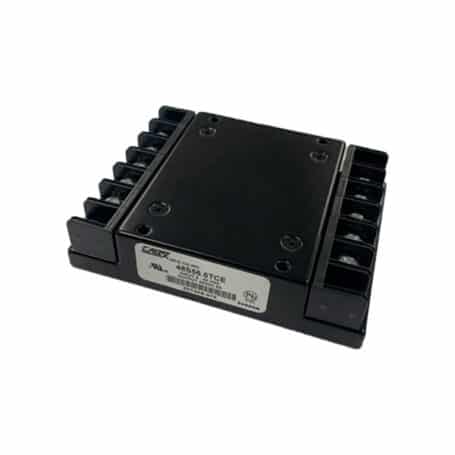

Power > TCE Series
TCE Series

TCE Series

Input: 9-60VDC
Outputs: 56VDC
Power: 360 Watt
Tamb: -40 to 85˚C
Dims: 81.28 x 109.22 x 25.4mm
RoHS Compliant
Made in USA

Make an enquiry
X

Make an Enquiry

  • This field is for validation purposes and should be left unchanged.
have a question? Contact us now

APPLICATION

The 6:1 Input Voltage 360 Watt Single 48S56.6TCE DC/DC converter provides a precisely regulated dc output. The output voltage is fully isolated from the input, allowing the output to be positive or negative polarity and with various ground connections.

The 360 Watt TCE meets the most rigorous performance standards in a ruggedized chassis mount package for mobile (12VIN), process control (24VIN), and industrial (48 VIN. The 360-watt TCE includes trim and remote ON/OFF.

Threaded-through holes are provided to allow easy mounting or the addition of a heatsink for extended temperature operation. The converter’s high efficiency and high power density are accomplished through the use of high-efficiency synchronous rectification technology, advanced electronic circuits, packaging, and thermal design thus resulting in a high-reliability product. The converter operates at a fixed frequency and follows conservative component de-rating guidelines.

MODEL NUMBERINPUT RANGEOUTPUTPOWER
48S56.6TCE9-60VDC56V360W

Downloads

Click on the link below for an instant download.

  • TCE Series Datasheet
