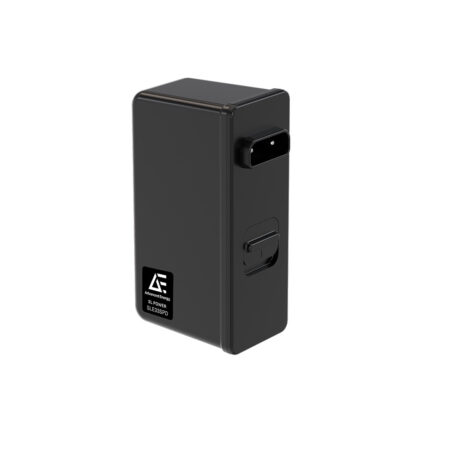

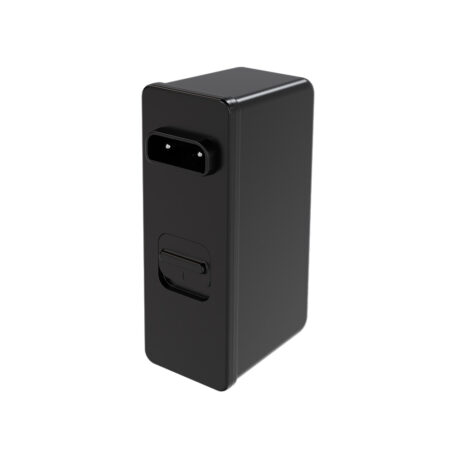

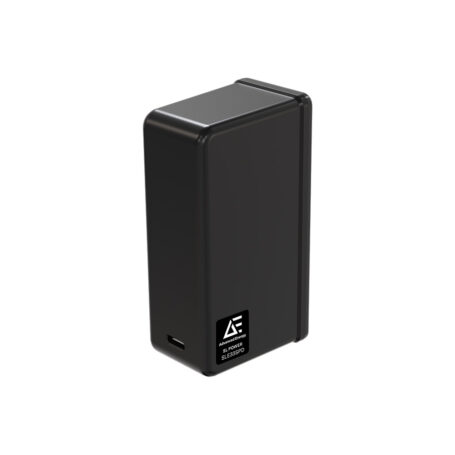

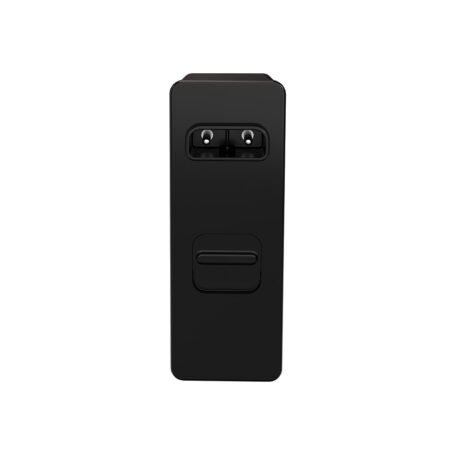

SLE33 Series

Input: 80-264 VAC
Outputs: 5V to 20V
Power: 33 Watt USB-C PD
Tamb: -10°C to +40°C
Dims: 90.5 x 48 x 33.5 mm
IEC/UL/EN60601-1, EN/IEC60601-1-2 Approved

Make an Enquiry

URL
This field is for validation purposes and should be left unchanged.
Product
First Name*
Last Name*
Email*
Company
Phone
City
Country*
Enquiry*
CAPTCHA

APPLICATION

The SLE33 Series is a 33W USB Power Delivery external adapter designed by SL Power, part of Advanced Energy, to serve both medical and industrial technology environments. Offering USB-C Power Delivery output with programmable voltages, the adapter supports a range of protocols including PD2.0, D3.0, QC2.0, QC3.0, QC4.0, and PPS, ensuring compatibility with modern charging standards. Its universal AC input range and compact, lightweight build make it ideal for global applications.

With full overvoltage, overcurrent, and short circuit protection, the SLE33SPD offers robust electrical safety. Input-to-output isolation is rated at 2 x MOPP, suitable for medical applications up to Class BF, and leakage current is kept below 100 µA. The adapter also meets critical efficiency and safety standards such as DoE Level VII and EU CoC V5 Tier 2, ensuring reduced standby power and high energy performance.

These adapters are certified to IEC60601-1 and IEC62368-1 standards, offering compliance and reliability for OEMs. The product is especially well-suited for use in medical, industrial, test and measurement, and consumer charging applications where space, safety, and compliance are crucial.

feature list

Medical and ITE safety approved
USB-C output with programmable voltage support
Very low standby power below 0.075 W
Overvoltage, overload, and short circuit protection
Supports multiple charging protocols including PD2.0, D3.0, QC2.0, QC3.0, QC4.0
Operates up to 5000 m altitude
Leakage current under 100 µA
2 x MOPP insulation from input to output
Interchangeable and fixed AC plug options available
Low ripple and noise with fast rise and hold-up times

MODEL NUMBER	INPUT RANGE	OUTPUT	POWER	OUTPUT CONFIGURATION
SLE33SPD96B01	80-264 VAC	5, 9, 12, 15, 20 V	33W	1.2m cable, USB C
SLE33SPD00B01	80-264 VAC	5, 9, 12, 15, 20 V	33W	Built-in USB C
SLE33SPD96C01	80-264 VAC	5, 9, 12, 15, 20 V	33W	1.2m cable, USB C
SLE33SPD96M01	80-264 VAC	5, 9, 12, 15, 20 V	33W	1.2m cable, USB C
SLE33SPD96G01	80-264 VAC	5, 9, 12, 15, 20 V	33W	1.2m cable, USB C
SLE33SPD96H01	80-264 VAC	5, 9, 12, 15, 20 V	33W	1.2m cable, USB C
SLE33SPD00C01	80-264 VAC	5, 9, 12, 15, 20 V	33W	Built-in USB C
SLE33SPD00M01	80-264 VAC	5, 9, 12, 15, 20 V	33W	Built-in USB C
SLE33SPD00G01	80-264 VAC	5, 9, 12, 15, 20 V	33W	Built-in USB C
SLE33SPD00H01	80-264 VAC	5, 9, 12, 15, 20 V	33W	Built-in USB C

Downloads

Click on the link below for an instant download.

SLE33 Series Datasheet
