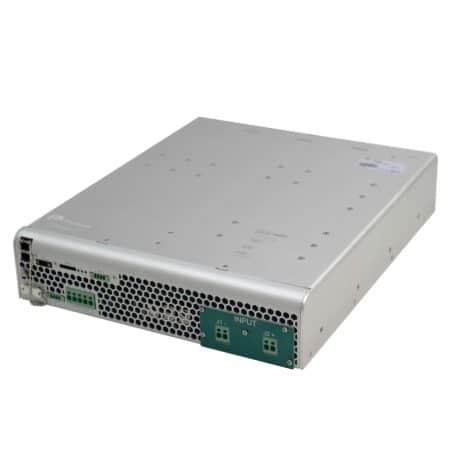

OVX-6400 Series

OVX-6400 Series

Input: 400-900Vdc
Outputs: 400Vac 3ph
Power: 6400VA / 8000W pk
Tamb: -25 to 80°C
Dims: 85.8 x 372 x 450.3 mm
Meets EN50124-1 / EN50155 / EN62368-1
Made in Spain

Make an enquiry
Request a sample
X

Make an Enquiry

  • This field is for validation purposes and should be left unchanged.
X

Request a Sample

  • This field is for validation purposes and should be left unchanged.
have a question? Contact us now

APPLICATION

The OVX-6400 Series is a three-phase sine-wave DC-AC inverter designed not only to work within 400 to 900V input voltage range but also to withstand surges and over-voltages as described in EN50124-2.

The unit allows:

  • Start-up motors by means of a soft start. In the start-up, the output voltage rises linearly from 0V to set voltage and the frequency from the initial to the set one. The start-up ramp slope may be changed via RS-232
  • Set the rotation speed of a motor according to the appropriate Voltage/Frequency ratio.
  • Configurable input (pin 1 and 2 of J4):
  • Reverse mode: Changing the rotation direction for the next start-up of a motor by applying voltage between 15 and 143V.
  • Mid power mode: Changing the output frequency in V/F mode from nominal to a mid-power frequency by applying voltage between 15 and 143V.
  • Monitoring the status of the input and output voltage through the contacts of two separate solid state relays.
  • Set and monitor parameters via RS-232, CAN BUS.

The OVX-6400 is equipped with a maximum average power protection as well as maximum output peak current protection. This protects the semiconductors even when an output short-circuit occurs. It also features a disable function for input under-voltage, which allows protecting the batteries from harmful discharges.

MODEL NUMBERINPUT RANGEOUTPUTPOWER
OVX-6400-7701400-900VDC400VAC 3ph6400VA
8000kWpk

Downloads

Click on the link below for an instant download.

  • OVX-6400 Series Datasheet
