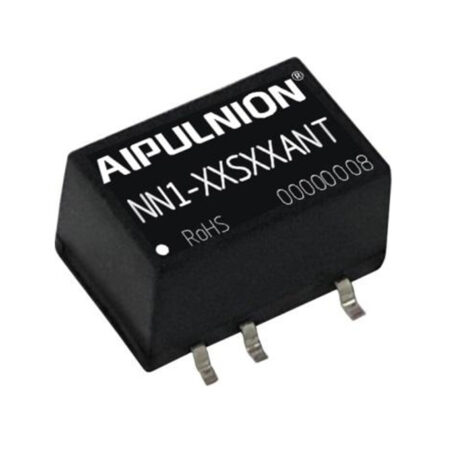

NN1-XXSXXANT Series

NN1-XXSXXANT Series

Inputs: 4.5Vdc to 5.5Vdc
Outputs: 3.3 to 24Vdc
Power: 1 Watt
Tamb: -40°C to +105°C
Dims: 12.7 X 11.20 X 7.25mm
Very low cost, UL approved

Make an enquiry
Request a sample
X

Make an Enquiry

  • This field is for validation purposes and should be left unchanged.
X

Request a Sample

  • This field is for validation purposes and should be left unchanged.
have a question? Contact us now
01929 555 700
sales@relec.co.uk

APPLICATION

The NN1-XXSXXANT from Aipupower is designed specifically for pure digital systems, low-frequency analogue circuits, and relay-driven circuits requiring isolated voltage within distributed power supply systems. With a focus on delivering reliable performance in environments with stable input power and moderate isolation needs, this series is ideal for engineers seeking cost-effective solutions for specific applications.

Key applications include systems where the input power supply voltage is relatively stable (with a variation range of ±10% Vin) and where isolation between input and output is required (with an isolation voltage of up to 1500VDC). This series is particularly suited for applications with low requirements for output voltage stability and minimal ripple noise.

Whether you’re developing industrial controls, instrumentation, or other systems with specific isolation and stability needs, the NN1-XXSXXANT series offers a targeted and efficient solution for isolated power supply designs.

feature list

Fixed input voltage, isolated & unregulated output, power: 1W
Continuous short circuit protection
Operating temperature: -40°C to +105°C
Small SMD package, international standard pinout
Isolation voltage: 1500VDC
High efficiency up to 88%
No-load input current as low as 3mA
ESD satisfies 8KV contact discharge

MODEL NUMBERINPUT RANGEOUTPUTPOWER
NN1-3V3S3V3ANT2.97 - 3.63Vdc3.31W
NN1-3V3S05ANT2.97 - 3.63Vdc5V1W
NN1-3V3S09ANT2.97 - 3.63Vdc9V1W
NN1-3V3S12ANT2.97 - 3.63Vdc12V1W
NN1-3V3S15ANT2.97 - 3.63Vdc15V1W
NN1-3V3S24ANT2.97 - 3.63Vdc24V1W
NN1-05S3V3ANT4.5 - 5.5Vdc3.3V1W
NN1-05S05ANT4.5 - 5.5Vdc5V1W
NN1-05S09ANT4.5 - 5.5Vdc9V1W
NN1-05S12ANT4.5 - 5.5Vdc12V1W
NN1-05S15ANT4.5 - 5.5Vdc15V1W
NN1-05S24ANT4.5 - 5.5Vdc24V1W
NN1-12S3V3ANT10.8 - 13.2Vdc3.3V1W
NN1-12S05ANT10.8 - 13.2Vdc5V1W
NN1-12S09ANT10.8 - 13.2Vdc9V1W
NN1-12S12ANT10.8 - 13.2Vdc12V1W
NN1-12S15ANT10.8 - 13.2Vdc15V1W
*NN1-12S24ANT10.8 - 13.2Vdc24V1W
NN1-15S05ANT13.5 - 16.5Vdc5V1W
NN1-24S3V3ANT21.6 - 26.4Vdc3.3V1W
NN1-24S05ANT21.6 - 26.4Vdc5V1W
NN1-24S09ANT21.6 - 26.4Vdc9V1W
NN1-24S12ANT21.6 - 26.4Vdc12V1W
NN1-24S15ANT21.6 - 26.4Vdc15V1W
NN1-24S24ANT21.6 - 26.4Vdc24V1W

Downloads

Click on the link below for an instant download.

  • NN1-XXSXXANT Series Datasheet
