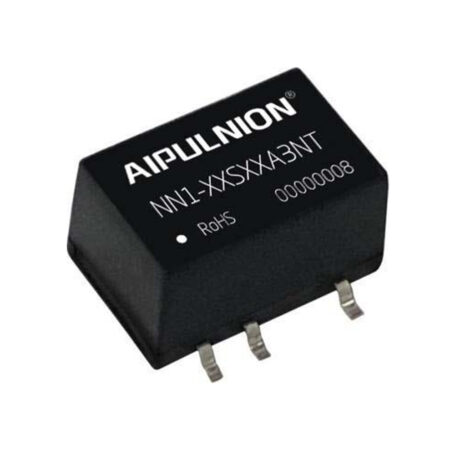

NN1-xxSxxA3NT Series
NN1-xxSxxA3NT Series from Aipu, 1W SMD isolated dc-dc converters
Compact 3000V isolated modules with efficiencies up to 88%.
download the NN1-xxSxxA3NT Series data sheet
Access detailed specifications, performance data, and technical drawings for the NN1-xxSxxA3NT Series in our comprehensive datasheet.
Need a 3D drawing?
Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.
Stuck on specs? Let’s chat
We’re online and ready to chat.
APPLICATION
NN1-xxSxxA3NT Series from Aipu, 1W SMD isolated dc-dc converters
Compact 3000V isolated modules with efficiencies up to 88%.
FEATURES
INDUSTRY
| Model | Input Voltage | Output Voltage | Power Rating |
|---|---|---|---|
| NN1-3V3S03A3NT | 2.97-3.63V dc | 3.3V | 1W |
| NN1-3V3S05A3NT | 2.97-3.63V dc | 5V | 1W |
| NN1-3V3S09A3NT | 2.97-3.63V dc | 9V | 1W |
| NN1-3V3S12A3NT | 2.97-3.63V dc | 12V | 1W |
| NN1-3V3S15A3NT | 2.97-3.63V dc | 15V | 1W |
| NN1-05S03A3NT | 4.5-5.5V dc | 3.3V | 1W |
| NN1-05S05A3NT | 4.5-5.5V dc | 5V | 1W |
| NN1-05S09A3NT | 4.5-5.5V dc | 9V | 1W |
| NN1-05S12A3NT | 4.5-5.5V dc | 12V | 1W |
| NN1-05S15A3NT | 4.5-5.5V dc | 15V | 1W |
| NN1-12S03A3NT | 10.8-13.2V dc | 3.3V | 1W |
| NN1-12S05A3NT | 10.8-13.2V dc | 5V | 1W |
| NN1-12S09A3NT | 10.8-13.2V dc | 9V | 1W |
| NN1-12S12A3NT | 10.8-13.2V dc | 12V | 1W |
| NN1-12S15A3NT | 10.8-13.2V dc | 15V | 1W |
| NN1-15S03A3NT | 13.5-16.5V dc | 3.3V | 1W |
| NN1-15S05A3NT | 13.5-16.5V dc | 5V | 1W |
| NN1-15S09A3NT | 13.5-16.5V dc | 9V | 1W |
| NN1-15S12A3NT | 13.5-16.5V dc | 12V | 1W |
| NN1-15S15A3NT | 13.5-16.5V dc | 15V | 1W |
| NN1-24S03A3NT | 21.6-26.4V dc | 3.3V | 1W |
| NN1-24S05A3NT | 21.6-26.4V dc | 5V | 1W |
| NN1-24S09A3NT | 21.6-26.4V dc | 9V | 1W |
| NN1-24S12A3NT | 21.6-26.4V dc | 12V | 1W |
| NN1-24S15A3NT | 21.6-26.4V dc | 15V | 1W |
