Power > MUW6
MUW6

MUW6

Input: 4.5 - 76Vdc
Outputs: ±12V - ±15V
Power: 6 Watt
Tamb: -40 to 95°C
Dims: 24 x 8.5 x 17.3mm
UL62368-1, EN62368-1 Approved
Made in Japan

X

Make an Enquiry

  • This field is for validation purposes and should be left unchanged.

APPLICATION

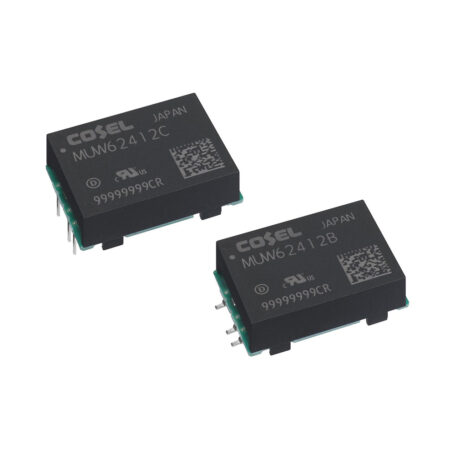

The MUW6 is a compact, high-reliability DC-DC converter featuring dual isolated outputs, designed for PCB mounting in applications demanding up to 6W of power. Supporting wide input voltage ranges from 4.5V to 76V DC, it delivers ±12V or ±15V outputs, or single-ended +24V or +30V equivalents, with up to 0.25A output current per channel. The MUW6 is available in both surface-mount (type B) and DIP (type C) formats to suit diverse integration needs.

With typical efficiencies reaching 88%, the MUW6 includes precise regulation, low ripple noise, and built-in protection such as automatic recovery overcurrent protection. The converter supports symmetrical loading and offers a fixed output voltage with a ±10% adjustment range via external trimming. Remote ON/OFF control using negative logic enhances system control options.

Certified to UL62368-1, C-UL, and EN62368-1, the MUW6 ensures global safety compliance. Its robust design, 500V isolation, and -40°C to +95°C operating temperature capability make it ideal for use in industrial electronics, test equipment, and distributed power systems requiring compact, dual-output isolated DC conversion.

Downloads

Click on the link below for an instant download.

  • MU Series Datasheet
