MUW3

MUW3

Input: 4.5 - 76Vdc
Outputs: ±12V - ±15V
Power: 3 Watt
Tamb: -40 to 100°C
Dims: 21.4 x 8.5 x 13.4mm
UL62368-1, EN62368-1 Approved
Made in Japan

X

Make an Enquiry

  • This field is for validation purposes and should be left unchanged.

APPLICATION

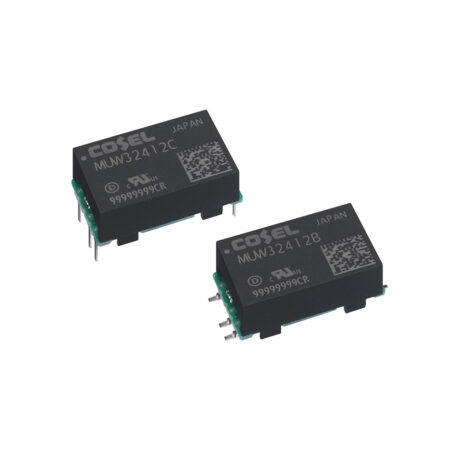

The MUW3 series is a dual-output, PCB mount-type DC-DC converter designed for applications requiring isolated and balanced power delivery in a compact 3W package. With input voltage ranges from 4.5V to 76V DC and output options of ±12V or ±15V, or single-ended equivalents of +24V or +30V, the MUW3 provides flexible power configurations for both analogue and digital systems. It is available in both surface-mount (SMD) and through-hole (DIP) formats.

Delivering up to 3.12W, the MUW3 offers typical efficiencies of 84% and supports symmetrical loading with stable voltage regulation. Outputs are factory-set but can be trimmed ±10% externally. Key features include overcurrent protection with automatic recovery, remote ON/OFF control (negative logic), and low ripple noise. The unit maintains reliable operation over a wide temperature range of -40°C to +100°C and is fully isolated to 500V AC between input and output.

Certified to UL62368-1, C-UL, and EN62368-1 standards, the MUW3 is well suited for use in industrial electronics, signal processing, instrumentation, and any application where compact dual-output isolated power is required with strong reliability and environmental resilience.

Downloads

Click on the link below for an instant download.

  • MU Series Datasheet
