MUW1R5

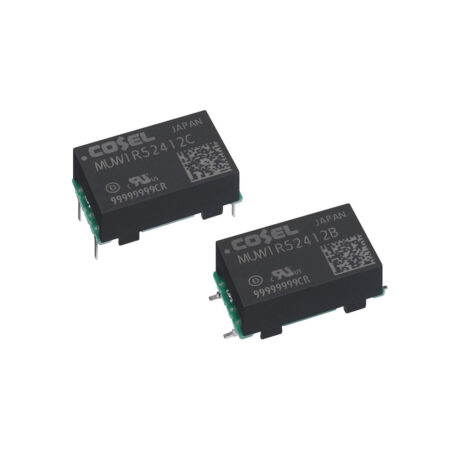

The MUW1R5 series is a compact, dual-output DC-DC converter designed for PCB mounting in space-sensitive, isolated power applications. Delivering up to 1.56W, the series supports a wide input voltage range from 4.5V to 76V DC across various models, and provides ±12V or ±15V outputs, or their corresponding single-ended equivalents, +24V or +30V. It is offered in both SMD (type B) and DIP (type C) formats to accommodate different assembly preferences.

With typical efficiency up to 82%, the MUW1R5 features tightly regulated output, fixed or trimmable voltages, and protection against overcurrent with automatic recovery. It maintains stable operation across a broad temperature range of -40°C to +100°C and includes reinforced isolation between input and output (AC500V for 1 minute). The converters exhibit low ripple and noise, and consistent performance even under harsh environmental conditions.

Certified to UL62368-1, C-UL, and EN62368-1, the MUW1R5 is a reliable solution for industrial control systems, test and measurement equipment, and distributed power architectures where isolated dual outputs are required in a small, lightweight form factor.
