MUW10

MUW10

Input: 4.5 - 76Vdc
Outputs: ±12V - ±15V
Power: 10.8 Watt
Tamb: -40 to 95°C
Dims: 24 x 8.5 x 17.3mm
UL62368-1, EN62368-1 Approved
Made in Japan

X

Make an Enquiry

  • This field is for validation purposes and should be left unchanged.

APPLICATION

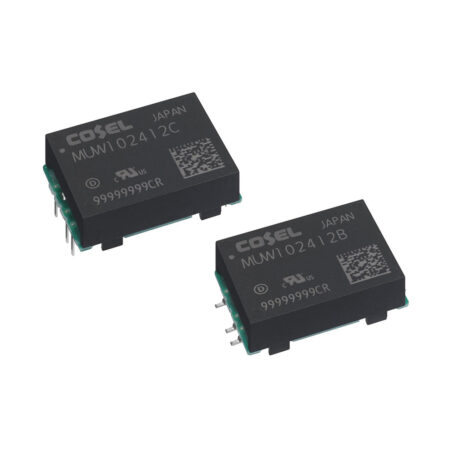

The MUW10 is a high-performance, dual-output DC-DC converter designed for PCB mounting in systems that demand up to 10.8W of isolated power. It supports a broad input voltage range from 4.5V to 76V DC and delivers either ±12V or ±15V outputs, or single-ended +24V or +30V, with output currents up to 0.45A. The series is available in both surface-mount (type B) and DIP (type C) formats for flexible integration.

Efficiency is a key advantage of the MUW10, with typical values reaching up to 89%, depending on model and input. The series offers symmetrical dual outputs with excellent line and load regulation, low ripple noise, and a ±10% adjustable output range using an external trim. Built-in protections include automatic recovery overcurrent protection and a remote ON/OFF function (negative logic) for system-level control.

Certified to UL62368-1, C-UL, and EN62368-1, the MUW10 series is suitable for demanding environments, operating from -40°C to +90°C with full isolation of 500V AC. This makes it a reliable solution for industrial automation, measurement systems, and embedded electronics requiring compact, efficient, and isolated dual-output power.

Downloads

Click on the link below for an instant download.

  • MU Series Datasheet
