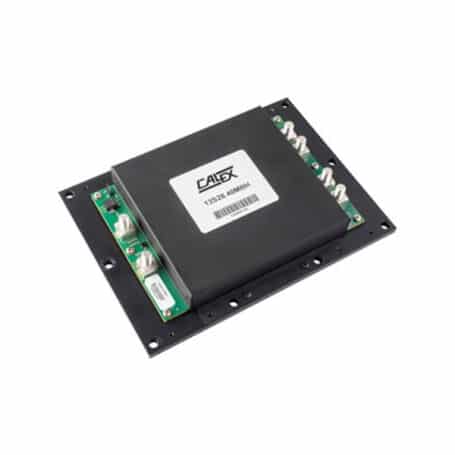

MBH Series

Input: 10-16V
Outputs: 28V dc
Power: 1000-2100 Watt
Tamb: -40°C to +95°C
Dims: 9.0" x 6.5" x 1.25"
Efficiency 97%

Make an enquiry
X

Make an Enquiry

  • This field is for validation purposes and should be left unchanged.
have a question? call us now

APPLICATION

The 2100 Watt MBH DC/DC Converter series are high efficiency non-isolated dc/dc switched-mode single output converters specifically designed for both military and commercial mobile applications. This series is packaged in an unprecedented low profile 9.0”L x 6.5”W x 1.25”H mechanically enclosed package making the unit ideal for harsh shock and vibration environments.

The MBH series integrates high efficiency dc/dc converters with input transient and reverse polarity protection circuitry. The DC/DC Converters are designed with a wide operational temperature range and are well suited for a high temperature environment.

The MBH Series DC/DC converter’s high efficiency and high power density are accomplished through the use of high-efficiency synchronous rectification technology, advanced electronic circuitry, packaging and thermal design resulting in highly reliable product. The MBH series operates at a fixed switching frequency and follows conservative component de-rating guidelines.

MODEL NUMBERINPUT RANGEOUTPUTPOWER
13S28.40MBH10V-16V28V1100W
13S28.60MBH10V-16V28V1680W
13S28.75MBH10V-16V28V2100W

Downloads

Click on the link below for an instant download.

  • MBH series datasheet
