Input: 250Vac / 250Vdc
Current: 1 - 16A
Tamb: -40°C to +100°C
Dims: 85 x 89.5 x 25mm
2 stage with option fuse or circuit breaker

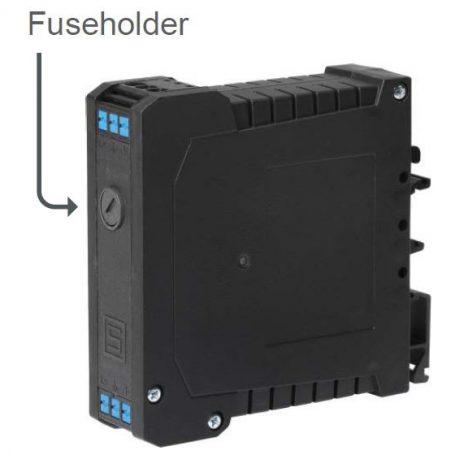

The FPBB RAIL is a slim dual-stage, single-phase / DC filter, measuring only 25 mm in width. The space-saving design integrates an optional fuseholder or circuit breaker. The FPBB filters are also available with overvoltage varistors in all three variations.
- Single-phase line filter in standard and medical versions
- 2-Stage filters
- very high attenuation
- Thermal circuit breaker
- Surge protection
- Protection against interference voltage from the mains
- Especially designed for electric switch and control cabinets
- Suitable for use in equipment according to IEC/UL 60950
Suitable for use in medical equipment according to IEC/UL 60601-1
