Power > FLEX280 Series

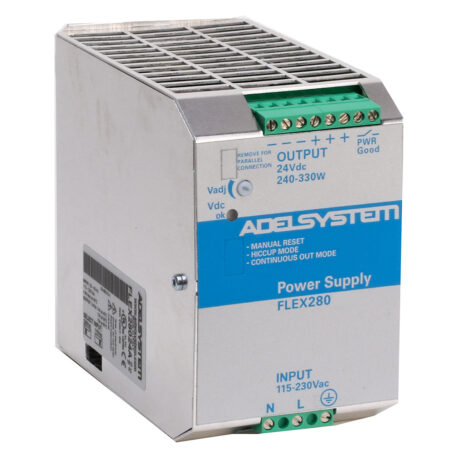

FLEX280

FLEX280 Series

Single-phase I/P: 115/230Vac (Manual select)
Three-phase Input range: 330-550Vac
Outputs: 12V to 48V
Power: Up to 336 Watt
Tamb: -25 to 70°C
Dims: 72 x 115 x 135 mm
Made in Italy

Make an enquiry
X

Make an Enquiry

  • This field is for validation purposes and should be left unchanged.
have a question? Contact us now

APPLICATION

The FLEX280 Series power supplies from ADEL System are designed to deliver high efficiency and robust performance across a range of industrial and commercial applications. With an input voltage range of 115 to 230 Vac (or  230 – 400 – 500 Vac) and output options of 24 Vdc, these units are built to provide flexible power continuity from 240 to 345 W. Featuring an efficiency rate of up to 91%, the FLEX280 Series ensures minimal energy loss and maximum performance.

These power supplies are equipped to handle strong overloads up to 150% without shutting down, providing reliable operation even under heavy loads. They offer versatile protection modes, including Hiccup Mode, Continuous Out Mode, and Manual Reset, ensuring safe and uninterrupted operation. The FLEX280 Series also boasts a “Power Good” relay, allowing for easy status monitoring.

Designed for ease of installation, these units are DIN rail mountable and feature an extremely compact size, making them perfect for space-constrained applications. They operate reliably in a wide temperature range from -25°C to +70°C, with a 3-year warranty for added peace of mind. The FLEX280 Series combines advanced features with a robust design, making it an ideal choice for critical power applications.

MODEL NUMBERINPUT RANGEOUTPUTPOWER
FLEX28012A90-135Vac
170-264Vac
238-370Vdc
12V240W
345W peak
FLEX28024A90-135Vac
170-264Vac
238-370Vdc
24V240W
345W peak
FLEX28024B187-264Vac
330-550Vac
462-770Vdc
24V240W
345W peak
FLEX28048A90-135Vac
170-264Vac
238-370Vdc
48V240W
345W peak

Downloads

Click on the link below for an instant download.

  • FLEX28048A Datasheet
  • FLEX28012A Datasheet
  • FLEX28024B Datasheet
  • FLEX28024A Datasheet
