APPLICATION

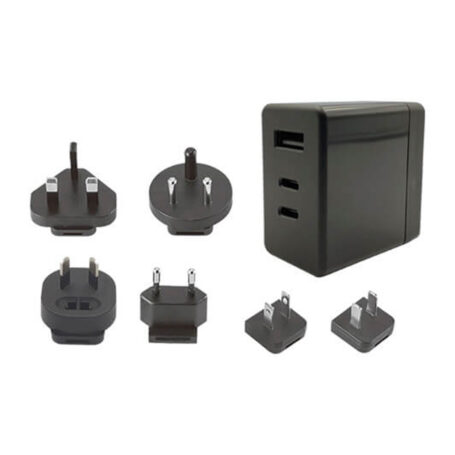

The EU306AS GaN PD Charger (USB Type-C) is a powerful multi-port plugtop charger delivering up to 65W across dual USB-C ports and one USB-A port.
Using Gallium Nitride technology for enhanced efficiency and compact size, it supports Power Delivery 3.0 and Quick Charge 4.0+, making it suitable for fast charging a wide variety of mobile devices. It features intelligent power distribution for simultaneous output configurations and comes with an interchangeable AC plug system for global compatibility.
feature list
Triple-port output: 2 x USB-C, 1 x USB-A
Simultaneous multi-device charging up to 65W
Compact GaN-based design for high efficiency
Interchangeable AC plug system for global use
Supports PD 3.0 and QC 4.0+ protocols
Auto-recovery protections for all major fault conditions
< 0.3W no-load power draw
Energy Efficiency Level VI certified
Wide voltage support on each port
MTBF greater than 100,000 hours
| MODEL NUMBER | INPUT RANGE | OUTPUT | OUTPUT TYPE | POWER |
|---|---|---|---|---|
| EU306AS | 100-240VAC | 5-20V | USB-C1 | 66W |
| 100-240VAC | 5-20V | USB-C2 | 66W | |
| 100-240VAC | 5-12V | USB-A | 20W | |
| 100-240VAC | 5-20V | USB-C1+C2 | 66W | |
| 100-240VAC | 5-20V | USB-C1+A | 66W | |
| 100-240VAC | 5V | USB-C2+A | 15W | |
| 100-240VAC | 5-20V | USB-C1+C2+A | 60W |
