APPLICATION

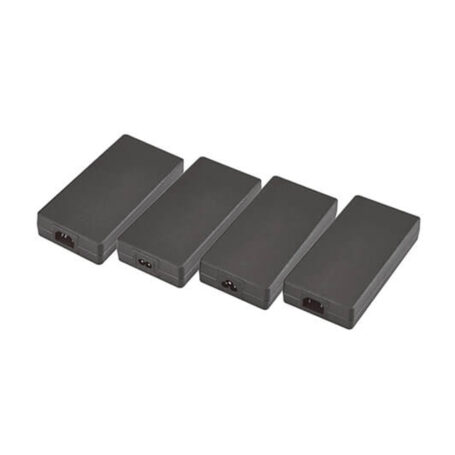

The EM1251 Medical GaN AC-DC Desktop Adaptor is designed for critical healthcare applications requiring compact, high-efficiency power delivery.
Based on gallium nitride technology, it delivers up to 250W in a small form factor with exceptional energy performance. The device features a wide input range and multiple regulated DC output options from 12V to 56V, making it versatile for various medical devices and systems.
Built-in protection mechanisms include auto-recovery from short circuit, overvoltage, and overcurrent faults, with a latch-off safeguard for overheating.
Certified under key international medical and safety standards, this adaptor ensures safe and compliant operation in demanding environments. Ideal for use in medical diagnostics, monitoring equipment, and portable healthcare devices.
feature list
Gallium Nitride power conversion
Compact and lightweight desktop design
Active power factor correction
Energy efficiency up to 95%
Extremely low no-load power consumption
Short circuit, overvoltage, and overcurrent protection
Overtemperature protection with latch-off
Global safety approvals including IEC/EN60601-1
Wide AC input voltage range
MTBF over 100,000 hours for high reliability
| MODEL NUMBER | INPUT RANGE | OUTPUT | RIPPLE & NOISE | POWER |
|---|---|---|---|---|
| EM1251XA | 100-240VAC | 12~15V | 300mV | 200W |
| EM1251XB | 100-240VAC | 19~24V | 360mV | 200W |
| EM1251XC | 100-240VAC | 28~36V | 540mV | 200W |
| EM1251XD | 100-240VAC | 48~56V | 840mV | 200W |
| EM1251XE | 100-240VAC | 19~24V | 360mV | 230W |
| EM1251XF | 100-240VAC | 28~36V | 540mV | 230W |
| EM1251XG | 100-240VAC | 48~56V | 840mV | 230W |
| EM1251XH | 100-240VAC | 19~24V | 360mV | 250W |
| EM1251XJ | 100-240VAC | 28~36V | 540mV | 250W |
| EM1251XK | 100-240VAC | 48~56V | 840mV | 250W |
