Power > EM1180 Series

EM1180 Series

Input: 100–240 Vac
Outputs: 12–56Vdc
Power: Up to 180W
Tamb: -20°C to +40°C
Dims: 151.3 x 75.8 x 25.4 mm
2 x MOPP Compliance, IEC/EN60601-1 Approval

Make an Enquiry

Instagram
This field is for validation purposes and should be left unchanged.
Product
First Name*
Last Name*
Email*
Company
Phone
City
Country*
Enquiry*
CAPTCHA

APPLICATION

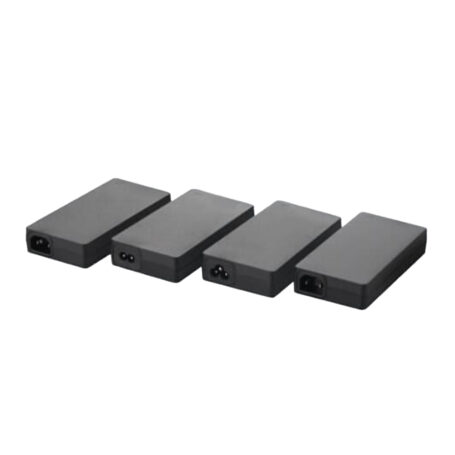

The EM1180 Series GaN Medical AC-DC Desktop Adaptor is a compact, high-efficiency power supply specifically designed for medical environments requiring stringent compliance and performance. Built on Gallium Nitride technology, the EM1180 offers up to 180W output with superior thermal and power efficiency in a portable design.

It supports universal AC input from 100 to 240VAC and delivers regulated DC output across a wide voltage range from 12V to 56V depending on model selection. Key protection features include auto-recovery against short circuit, overvoltage, and overcurrent, along with latch-off for over-temperature events.

With compliance to IEC/EN60601-1 and 2 x MOPP insulation level, the adaptor ensures safe usage in patient care settings. Certifications such as CE, UKCA, FCC, CB, and TUV reinforce its suitability for global deployment in medical and industrial environments.

This series is ideally suited for applications in medical diagnostic equipment, monitoring systems, and healthcare IT devices that demand reliable, certified power solutions.

feature list

Gallium Nitride power design
Compact, lightweight construction ideal
Active power factor correction
LED indicator
Auto-recovery short circuit, overvoltage, and overcurrent protection
Latch-off over-temperature protection
Ultra-low no-load power consumption meeting global standards
Up to 95% efficiency across models
MTBF over 100,000 hours
Available with multiple AC inlets and DC plug options

MODEL NUMBER	INPUT RANGE	OUTPUT	POWER
EM1180XA	100-240VAC	12~15V	135W
EM1180XB	100-240VAC	19~24V	135W
EM1180XC	100-240VAC	28~36V	135W
EM1180XD	100-240VAC	48~56V	135W
EM1180XE	100-240VAC	12~15V	150W
EM1180XF	100-240VAC	19~24V	150W
EM1180XG	100-240VAC	28~36V	150W
EM1180XH	100-240VAC	48~56V	150W
EM1180XJ	100-240VAC	12~15V	170W
EM1180XK	100-240VAC	19~24V	180W
EM1180XM	100-240VAC	28~36V	180W
EM1180XN	100-240VAC	48~56V	180W

Downloads

Click on the link below for an instant download.

EM1180 datasheet
