APPLICATION

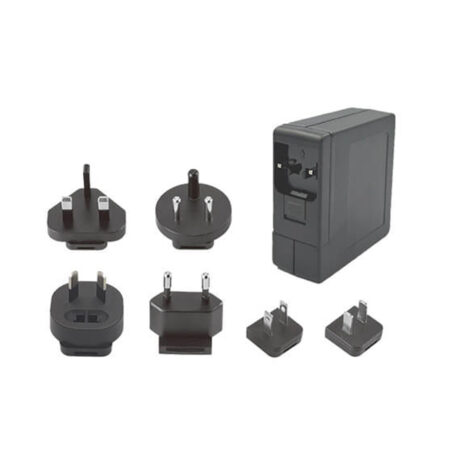

The EM1067S GaN Medical AC-DC Interchangeable Adapter is a compact and high-efficiency power solution designed for global medical applications.
Utilising GaN technology, this adapter delivers up to 65W of reliable power output across a wide voltage range of 12V to 56VDC. With its interchangeable plug design, it supports multiple international AC input formats, making it ideal for portable medical equipment and international deployment.
The unit is engineered for strict medical safety compliance, featuring 2 x MOPP isolation and certifications including IEC/EN60601-1 and CE EMC standards. Built-in protections against overvoltage, short circuit, overcurrent, and overtemperature ensure operational safety and longevity. This adapter serves healthcare, diagnostic, and monitoring systems that require reliable and safe power delivery in demanding environments.
feature list
Gallium Nitride-based design for enhanced efficiency
Interchangeable AC plugs for international use
Available power output up to 65W
Supports output voltages from 12V to 56V
Built-in short circuit, overvoltage, overcurrent, and overtemperature protection
2 x MOPP medical isolation compliance
No load power consumption as low as 0.15W
Energy Efficiency Level VI and CoC Tier II compliant
MTBF over 100,000 hours
Compact size
| MODEL NUMBER | INPUT RANGE | OUTPUT | POWER |
|---|---|---|---|
| EM1067SAR | 100-240VAC | 12~15V | 48W |
| EM1067SBR | 100-240VAC | 19~24V | 48W |
| EM1067SCR | 100-240VAC | 28~36V | 48W |
| EM1067SDR | 100-240VAC | 48~56V | 48W |
| EM1067SER | 100-240VAC | 12~15V | 65W |
| EM1067SFR | 100-240VAC | 19~24V | 65W |
| EM1067SGR | 100-240VAC | 28~36V | 65W |
| EM1067SHR | 100-240VAC | 48~56V | 65W |
| EM1067SJR | 100-240VAC | 19~24V | 65W |
| EM1067SKR | 100-240VAC | 28~36V | 65W |
| EM1067SLR | 100-240VAC | 48~56V | 65W |
