EIRE300 Series

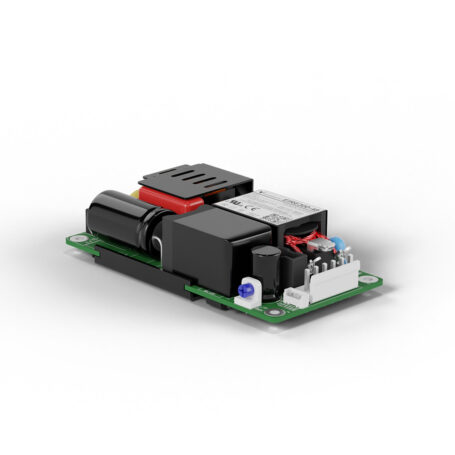

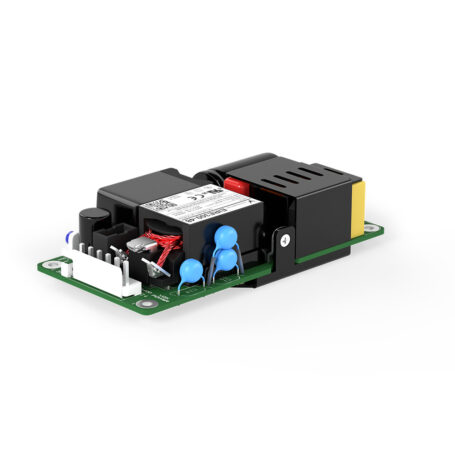

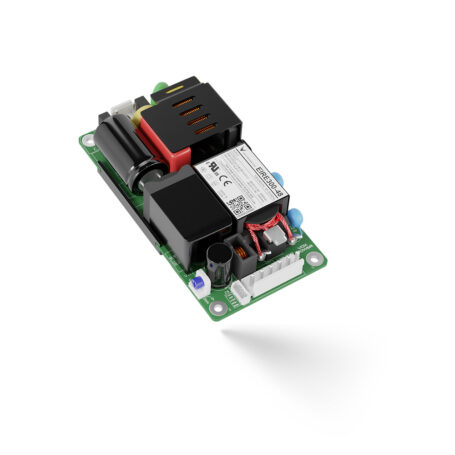

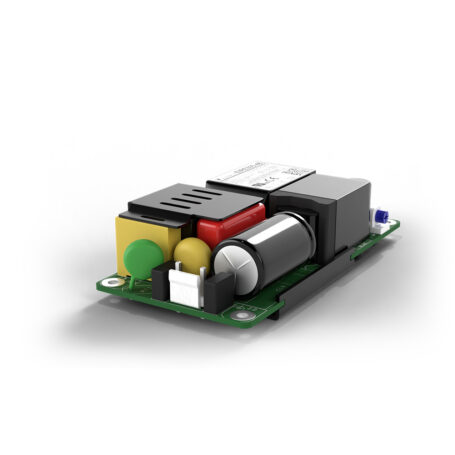

EIRE300 Series from Vox Power, 300W open frame AC-DC power supply.
Compact, low profile design with high efficiency and medical BF rating makes the EIRE300 ideal for healthcare, industrial and laboratory equipment.
download the EIRE300 Series data sheet
Access detailed specifications, performance data, and technical drawings for the EIRE300 Series in our comprehensive datasheet.
Need a 3D drawing?
Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.
Stuck on specs? Let’s chat
We’re online and ready to chat.
APPLICATION
The EIRE300 Series delivers up to 300W fan cooled or 200W convection cooled in a compact 4” x 2” x 1” open frame package. With efficiencies up to 95%, wide 85-264V ac input, and standard outputs from 12V to 54V, it supports both Class I and Class II installations. Features include remote sense, AC_OK signal, auxiliary 0.5A fan supply, and full protection set. Designed for medical (BF rated), industrial, household appliance and laboratory use. Certified to IEC/UL60601-1 3.2, IEC/UL62368-1, IEC60335-1, IEC61558-1, IEC61010-1, EN55032 Class B and IEC60601-1-2 Ed.4.
