Power > DNKMT0.5-V2 Series

DNKMT0.5-V2 Series

Input: 4.5-36Vdc
Outputs: 3 to 15V dc
Power: 1.65-7.5 Watt
Tamb: -40 to +85°C

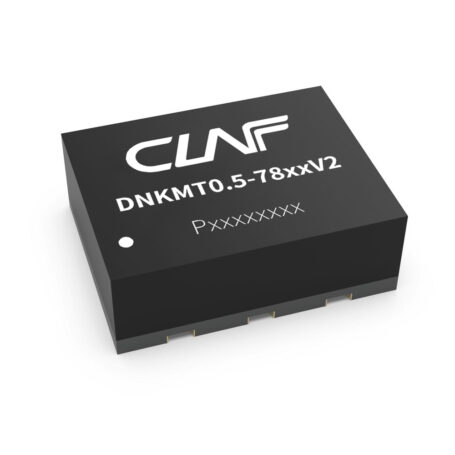

Dims: 9.0 x 7.0mm DFN package
Non isolated

Make an Enquiry

Product
First Name*
Last Name*
Email*
Company
Phone
City
Country*
Enquiry*
CAPTCHA
Email
This field is for validation purposes and should be left unchanged.

APPLICATION

The Claf Power DNKMT0.5-V2 Series are high efficiency switching regulators. The converters feature high efficiency, low loss and short-circuit protection in a compact DFN package. These products are widely used in applications such as industrial control, instrumentation and electric power.

feature list

Efficiency up to 92%
Temperature range: -40°C to +105°C
No heat sink required
0.5A DFN package
Short circuit protection
Low ripple and noise
Industry standard pinout
MTBF: 9152k hours (Mil-HDBK-217F 25°C)
RoHS compliance

Search:

MODEL NUMBER	INPUT RANGE	OUTPUT	Current
DNKMT0.5-7803V2	4.5 - 36Vdc	3V3	500mA
DNKMT0.5-7805V2	6.5 - 36Vdc	5V	500mA
DNKMT0.5-78X6V2	8 - 36Vdc	6V	500mA
DNKMT0.5-7809V2	12 - 36Vdc	9V	500mA
DNKMT0.5-7812V2	15 - 36Vdc	12V	500mA
DNKMT0.5-7815V2	19 - 36Vdc	15V	500mA

Showing 1 to 6 of 6 entries

Downloads

Click on the link below for an instant download.

DNKMT0.5-V2 Series Datasheet
