Power > DCS1400B

DCS1400B

Input: 200 - 435Vdc
Outputs: 12 - 65Vdc
Power: 1400 Watt
Tamb: -40 to 85°C (100°C Baseplate)
Dims: 116.8 x 12.7 x 61mm
UL62368-1 & EN62368-1 Approved
Made in Japan

Make an Enquiry

Product
First Name*
Last Name*
Email*
Company
Phone
City
Country*
Enquiry*
CAPTCHA
Comments
This field is for validation purposes and should be left unchanged.

APPLICATION

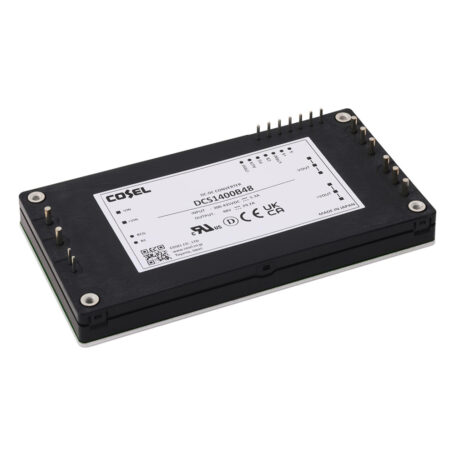

The DCS1400B DC-DC Converter from Cosel is a compact, high-power bus converter designed for distributed power systems. With an input range of 200 to 435VDC and output power up to 1404W, it offers wide voltage adjustability—down to near 0V, and constant current control, making it highly adaptable. The unit supports parallel and N+1 redundant operation, with optional features like a built-in ORing MOSFET and remote ON/OFF control for enhanced system flexibility.

It includes robust protection features such as overcurrent, overvoltage, and thermal shutdown. The design is fully isolated and optimised for conduction cooling, ideal for systems with limited airflow.

Certified to UL62368-1, EN62368-1, and compliant with CE, UKCA, and RoHS directives, the DCS1400B is well-suited for telecommunications, industrial automation, and data centre applications where reliability and compact power delivery are critical.

feature list

Wide output voltage range 0-78Vdc
Constant current regulation
Parallel Operation / N+1 Parallel Redundancy Operation
Built-in ORing MOSFET (Option)
Built-in overcurrent, overvoltage and thermal protection circuits
CE marking, Low Voltage Directive, RoHS Directive, and UKCA marking
Safety agency approvals including UL62368-1, C-UL, and EN62368-1
Remote ON/OFF and remote sensing capabilities
High efficiency up to 95% with conduction cooling and compact size
5 Year Warranty

Search:

MODEL NUMBER	INPUT RANGE	OUTPUT	POWER
DCS1400B12	200 - 435Vdc	12V	1200W
DCS1400B24	200 - 435Vdc	24V	1404W
DCS1400B28	200 - 435Vdc	28V	1400W
DCS1400B36	200 - 435Vdc	36V	1404W
DCS1400B48	200 - 435Vdc	48V	1401.6W
DCS1400B65	200 - 435Vdc	65V	1404W

Showing 1 to 6 of 6 entries

Downloads

Click on the link below for an instant download.

DCS Series Datasheet
