APPLICATION

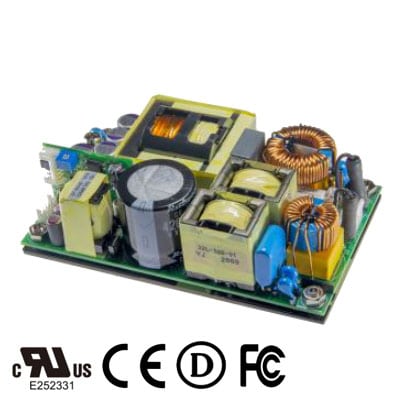

The CFM500S series are highly efficient, reliable, compact, high power density, single output AC/DC power modules designed for both conduction and convection cooled applications. The CFM500S is fully protected against short circuit and over-voltage conditions. Cincon’s world class automated manufacturing methods, together with an extensive testing and qualification program, ensure that the CFM500S series power module is extremely reliable.
Their high efficiency allows a very minimal power loss in end equipment, resulting in higher reliability, ease of thermal management, and regulatory approvals for an environmentally friendly end product.
feature list
Universal Input Range 90 ~ 264Vac
Active PFC Meets EN61000-3-2 Class D
High Efficiency up to 94.5%
High Power Density up to 20.9W/Inch3
Meets EN55032 and EN55022 Class B
Meets IEC/EN 60335-1
390W Convection, 470 ~ 500W Conduction Cooled
Over Temperature Protection
Continuous Short Circuit Protection
Remote Voltage Sense
PS On/Off Remote Control
Power Good & Power Fail Signal
+5V Stand-by Output Power
12V Fan Output
3"x 5" Size
| MODEL NUMBER | INPUT RANGE | OUTPUT | POWER |
|---|---|---|---|
| CFM500S120 | 90-264AC | 12V | 500W |
| CFM500S240 | 90-264AC | 24V | 500W |
| CFM500S360 | 90-264AC | 36V | 500W |
| CFM500S480 | 90-264AC | 48V | 500W |
