Outputs: 12 to 48V
Power: 100 Watt (120 Watts for 5 secs)
Tamb: -40°C to +85°C
Dims: Full Brick
UL / CE EN62368-1 Approved
Make an Enquiry

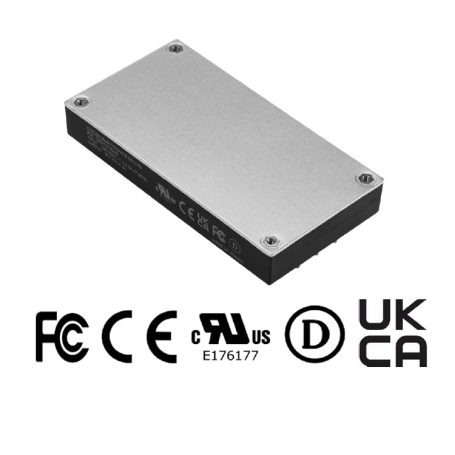

The CBM101S does not require any extremal components to pass EMI class B. These are highly efficient, reliable, compact, high power density, single output AC/DC power modules. The module is fully protected against short-circuit and over-voltage conditions.
Cincon’s world class automated manufacturing methods, together with an extensive testing and qualification program, ensure that the CBM101S series brick power module is extremely reliable
Universal Input Range 90~264Vac
High Efficiency up to 94.5%
Class I operation
No Load Input Power Consumption<0.5W
Peak Power Operation up to 120Watt for 5s
Approval IEC/EN/UL 62368-1
Approval EN55032 and CISPR/FCC Class B
Operating Altitude 5000m
Continuous Short Circuit Protection
Over Voltage Protection
Over Temperature Protection
Low Inrush Current < 8.5A
17mm Ultra Low Profile Package
Full Load without Heat Sink
No Fan Required
Built in EMI Filters Bulk Capacitor and Output Capacitors
Wide Operating Temperature Range
|MODEL NUMBER||INPUT RANGE||OUTPUT||POWER|
