Input: 100 - 122Vac
Power: 75 Watts
Temp: -20 to 100˚C
Dims: 57x37x13.95mm (2.3x1.45 x 0.5")
UL / CE Approved
1 Year Warranty
Make an Enquiry

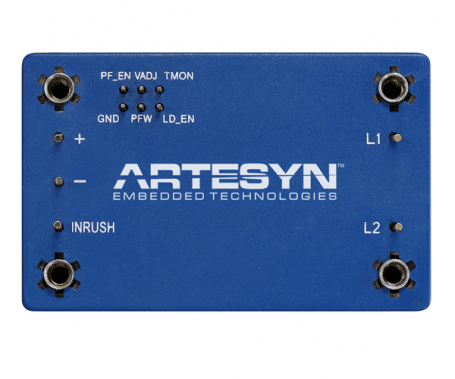

The AIQ00ZPFC series quarter-brick power factor correction module accepts a 100–122 Vac input and presents a unity power factor.
It accommodates AC supply frequencies in the range 360 to 800 Hz. Rated at 75 watts, the module offers a power conversion efficiency of up to 90% and provides a typical output voltage of 393 Vdc.
Based on an encapsulated design that incorporates a thermal baseplate, the AIQ00ZPFC series PFC module accommodates a baseplate operating temperature range of -20 to 100˚C. The module has an industry-standard 1.45 x 2.27 inch (36.8 x 57.9 mm) footprint and an installed height of only 0.54 inch (13.9 mm).
Artesyn Embedded Power’ AIQ00ZPFC series PFC modules comply with the RTCA-DO-160 avionics standard.
Unity power factor
High efficiency - up to 90%
Civil/Aviation supply frequency range 360 - 800 Hz
Up to 75 W output power
Negative enable function
RTCA-DO 160 compliant
100 °C baseplate operating temperature
Enable output to control DC-DC converter
Internal active switch bypassing external inrush current components
|MODEL NUMBER||INPUT RANGE||OUTPUT||POWER|
|AIQ00ZPFC-01NL||100 - 122Vac||393V||75W|
