AEK-3000 Series

Input: 90-264Vac
Outputs: 12 to 60VDC
Power: 3000 Watt
Tamb: -20 to 60°C
Dims: 280 x 170 x 64mm
EN/UL62368-1 & EN55032 EMC Safety Approved

Make an Enquiry

URL
This field is for validation purposes and should be left unchanged.
Product
First Name*
Last Name*
Email*
Company
Phone
City
Country*
Enquiry*
CAPTCHA

APPLICATION

The AEK-3000 Series delivers 3000W from a universal 90-264V ac input with peak efficiency up to 93%. Output models include 12V, 24V and 48V with programmable voltage and current, remote sense, and parallel operation with current share.

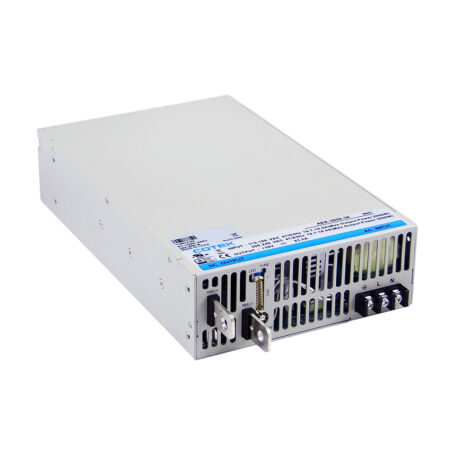

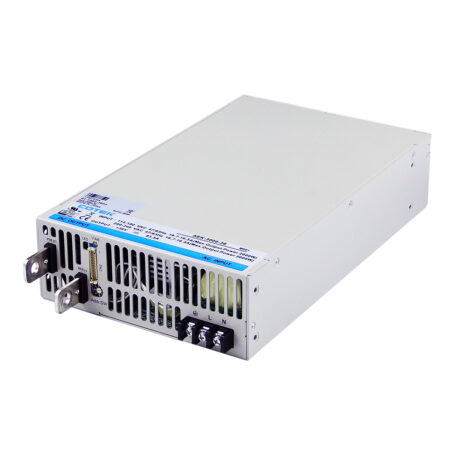

With a compact 1U chassis, forced air cooling and full protection features, AEK-3000 is designed for demanding industrial, test and communications equipment. Certified to IEC/UL/EN62368-1 and CE.

feature list

Universal AC Mains Input
Regulated, Single Outputs: 12V, 15V, 24V 30V, 36V 48V & 60Vdc
Selectable +5V 0.5A or +9V 0.3A Auxilliary Output
3000W AC-DC Chassis Mount Converters
Global Control via RS232
Multiple Remote settings via RS232, RS485 & I2C
Programmable Output Voltage (0% to 105%)
Programmable Output Current (0% to 105%)
Remote On/Off, Remote Sense
High efficiency, High-Reliability, & Long Life
-20°C to +60°C Operation
3 Year Warranty

MODEL NUMBER	INPUT RANGE	OUTPUT	POWER
AEK-3000-12	90-264VAC 127-370VDC	12V	2400W
AEK-3000-15	90-264VAC 127-370VDC	15V	2400W
AEK-3000-24	90-264VAC 127-370VDC	24V	3000W
AEK-3000-30	90-264VAC 127-370VDC	30V	3000W
AEK-3000-36	90-264VAC 127-370VDC	36V	3000W
AEK-3000-48	90-264VAC 127-370VDC	48V	3000W
AEK-3000-60	90-264VAC 127-370VDC	60V	3000W

Downloads

Click on the link below for an instant download.

AEK-3000 Datasheet
CT-xxx_controller user guide
AE Series Communications protocol
CT-211 Charger wizard application note
