Industry standard DC DC converters in wide input conduction cooled, 1/4, 1/2 and full brick formats. Products are designed to be PCB mounted with cooling provided either from an extensive range of standard heatsinks, or cold wall mounted for optimal thermal performance.
Typical applications include passenger information, rugged communication or solar powered control systems to name a few.
Products are available with a choice of 2:1, 4:1, 8:1 and even 10:1 inputs as well as high isolation levels and excellent efficiency.
Expert-to-expert (that’s you!)
Our expert sales team are standing by waiting to hear from you. We want to know all about your application and what you want to achieve. We will walk you through the design process with all of the tools you’ll ever need.
-
CQB75-300S Series
Input: 180 to 425V dc
Outputs: 5V to 48V dc
Power: 75 Watt
Tamb: -40°C to +105°C
Dims: Quarter Brick
3000V AC Reinforced Isolation -
CQB100W14 Series
Input: 12 to 160VDC
Outputs: 5V to 54VDC
Power: 100 W
Tamb: -40°C to +105°C
Dims: Quarter Brick
3000Vac isolation -
CHB150W8 Series
Input: 9 to 75V dc
Outputs: 12V to 48V dc
Power: 150 Watt
Tamb: -40°C to +100°C
Dims: Half Brick
1500Vdc isolation -
CQB150-300S Series
Input: 180 to 425V dc
Outputs: 5V to 48V dc
Power: 150 Watt
Tamb: -40°C to +100°C
Dims: Quarter Brick
3000V ac reinforced isolation
EN/UL62368-1 Approved -
CQB150-300Sxx CMFC Series
Input: 180 to 425V dc
Outputs: 5V to 48V dc
Power: 150 Watt
Built in EMC Filter
3000V ac reinforced isolation -
CHB200W Series
Input: 9-36V or 18-75V dc
Outputs: 3V to 48V dc
Power: 200 Watt
Tamb: -40°C to +100°C
Dims: Half Brick
UL / CE EN60950 Approved -
CHB200W-110S Series
Input: 43 to 160V dc
Outputs: 5V to 48V dc
Power: 200 Watt
Tamb: -40°C to +100°C
Dims: Half Brick
3000V dc isolation -

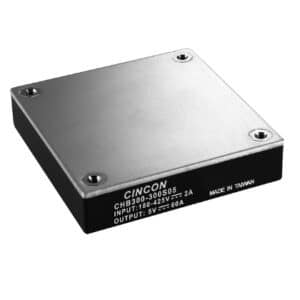

CHB300-300SXX-CMFC Series
Input: 180 to 425V dc
Outputs: 5V to 48V dc
Power: 300 Watt
Built in EMC Filter
3000V ac reinforced isolation -
CFB600-300S Series
Input: 180 to 425V DC
Outputs: 12V to 48V DC
Power: 600 Watt
Tamb: -40°C to +100°C
Dims: Full Brick
3000V AC Reinforced Isolation
Safety Meets IEC/EN/UL 62368-1 -
CFB600W-110SXX-CMFD Series
Input: 43 to 160V DC
Outputs: 12V to 48V DC
Power: 600 Watt
Tamb: -40°C to +100°C
Dims: 240 x 110 x 42 mm
Safety Meets IEC/EN/UL 60950-1
Baseplate Cooled -
CFB750-300S Series
Input: 200 to 425V DC
Outputs: 12V to 48V DC
Power: 750 Watt
Tamb: -40°C to +85°C
Dims: 4.60×2.40x0.50 inches
Fully Isolated 3000VAC
Safety Meets IEC/EN/UL 62368-1
