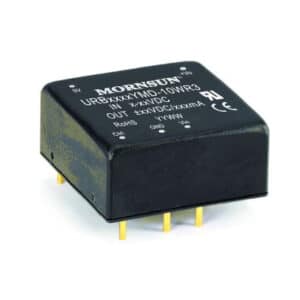

URB_YMD-10WR3 SeriesIndustry standard footprint DC DC converters with wide input 2:1 low power and tightly regulated outputs. We have a choice of 3 input ranges all based around standard battery voltages of 12V (9 – 18V), 24V (18 – 36V) and 48V (36 – 75V).

Typical applications include instrumentation, breaker control, fire detection and numerous industrial control systems.

Products come in a wide variety of industry standard footprints including SIP8, SMD24, DIP24 1” x 1”, 2” x 1” packages with options to chassis or DIN rail mount many of the modules.

All of our families are available with a choice of output voltages and currents with isolation options up to 3kV on standard products.

Fast and furious

Simply pick up the phone. It’s the quickest way to find the best fit and
to talk to one of our highly experienced engineers.

READ MOREREAD LESS
  • WRA_SD-1WR2 Series

    Input: 9 to 18Vdc & 18 to 36Vdc
    Outputs: ±5 to ±24V dc
    Power: 1 Watt
    Tamb: -40 to +85°C
    Dims: DIP 14.0 x 14.0 x 9.1mm
    1500V Isolation

  • WRA_S-1WR2 Series

    Input: Wide input(2:1) 4.5 to 75Vdc
    Outputs: ±3V to ±24V dc
    Power: 1 Watt
    Tamb: -40 to +85°C
    Dims: SIP8
    1500V Isolation

  • WRA_ST-1WR2 Series

    Input: 9 to 18Vdc & 18 to 36Vdc
    Outputs: ±5 to ±24V dc
    Power: 1 Watt
    Tamb: -40 to +85°C
    Dims: SMD 15.0 x 14.0 x 9.1mm
    1500V Isolation

  • WRB_ST-1WR2 Series

    Input: 9 to 18Vdc & 18 to 36Vdc
    Outputs: 3V3 to 24V dc
    Power: 1 Watt
    Tamb: -40 to +85°C
    Dims: SMD 15.0 x 14.0 x 9.1mm
    1500V Isolation

  • WRB_SD-1WR2 Series

    Input: 9 to 18Vdc & 18 to 36Vdc
    Outputs: 3V3 to 24V dc
    Power: 1 Watt
    Tamb: -40 to +85°C
    Dims: DIP 14.0 x 14.0 x 9.1mm
    1500V Isolation

  • WRE_S-1WR2 Series

    Input: Wide input(2:1) 4.5 to 75Vdc
    Outputs: ±3V to ±24V dc
    Power: 1 Watt
    Tamb: -40 to +85°C
    Dims: SIP8
    3000V Isolation

  • WRF_S-1WR2 Series

    Input: Wide input(2:1) 4.5 to 75Vdc
    Outputs: 3V to 24V dc
    Power: 1 Watt
    Tamb: -40 to +85°C
    Dims: SIP8
    3000V Isolation

  • WRA_S-3WR2 Series

    Input: Wide input(2:1) 4.5 to 75Vdc
    Outputs: ±3V to ±24V dc
    Power: 3 Watt
    Tamb: -40 to +85°C
    Dims: SIP8
    1500V Isolation

  • WRA_SD-3WR2 Series

    Input: 9 to 18Vdc & 18 to 36Vdc
    Outputs: ±5 to ±24V dc
    Power: 3 Watt
    Tamb: -40 to +85°C
    Dims: DIP 14.0 x 14.0 x 9.1mm
    1500V Isolation

  • WRA_ST-3WR2 Series

    Input: 9 to 18Vdc & 18 to 36Vdc
    Outputs: ±5 to ±24V dc
    Power: 3 Watt
    Tamb: -40 to +85°C
    Dims: SMD 15.0 x 14.0 x 9.1mm
    1500V Isolation

  • WRB_S-3WR2 Series

    Input: Wide input(2:1) 4.5 to 75Vdc
    Outputs: 3V to 24V dc
    Power: 3 Watt
    Tamb: -40 to +85°C
    Dims: SIP8
    1500V Isolation

  • WRB_SD-3WR2 Series

    Input: 9 to 18Vdc & 18 to 36Vdc
    Outputs: 3V3 to 24V dc
    Power: 3 Watt
    Tamb: -40 to +85°C
    Dims: Through Hole 14.0 x 14.0 x 9.1mm
    1500V Isolation

  • WRB_ST-3WR2 Series

    Input: 9 to 18Vdc & 18 to 36Vdc
    Outputs: 3V3 to 24V dc
    Power: 3 Watt
    Tamb: -40 to +85°C
    Dims: SMD 15.0 x 14.0 x 9.1mm
    1500V Isolation

  • WRE_S-3WR2 Series

    Input: Wide input(2:1) 4.5 to 75Vdc
    Outputs: ±3V to ±24V dc
    Power: 1 Watt
    Tamb: -40 to +85°C
    Dims: SIP8
    3000V Isolation

  • WRF_S-3WR2 Series

    Input: Wide input(2:1) 4.5 to 75Vdc
    Outputs: 3V to 24V dc
    Power: 3 Watt
    Tamb: -40 to +85°C
    Dims: SIP8
    3000V Isolation

  • VRB_LD-30WR3 Series

    Input: 18-36V or 36-75V dc
    Outputs: 3V to 24V dc
    Power: 30 Watt
    Tamb: -40 to +80°C
    Dims: 2" x 1" x 0.465"
    1500V Isolation

  • VRB_LD-50W Series

    Input: 18-36V or 36-75V dc
    Outputs: 3V to 24V dc
    Power: 50 Watt
    Tamb: -40 to +85°C
    Dims: 2" x 1" x 0.465"
    1500V Isolation
