CBM100S Series | 100 Watts | AC-DC Power Module | Cincon Power UKComponent level PCB Mount AC DC converters for integration into a broad range of equipment and applications. All of the products are approved to the latest safety and EMC standards, but we are on hand to support you at every step through the design process.

Typical applications include home automation, motor control, ventilation, pumps, signalling etc. In fact, any applications where the PSU has to be integrated onto the main PCB.

Products start with low profile single in line solutions from 1W to 5W and dual in line modules from 3W through to 700W.

PCB? PSU? AOK….

Samples are generally available from stock. Simply give us a call and we could have a converter on your desk the next day.

READ MOREREAD LESS
  • LS01 K3 Series

    Input: 85-305Vac
    Output: 5V
    Power: 1 Watts
    Tamb: -40 to 85°C
    Dims: 16.13 x 18.17 x 9.50 mm
    EN/UKCA 62368 Safety Approved
    Non Isolated

  • LS01 Series

    Input: 85-305Vac
    Outputs 3V3 to 24V
    Power: 1 Watt
    Tamb: -40 to 85°C
    Dims: 35 x 11 x 18mm
    UL / CE EN62368 Approved

  • LS03-16 Series

    Input: 90-528Vac
    Outputs 3V3 to 24V
    Power: 3 Watt
    Tamb: -40 to 85°C
    Dims: 44.5 x 13 x 22mm
    UL / CE EN62368 Approved

  • LD03 R2 Series

    Input: 85-305Vac
    Outputs: 3.3V to 24Vdc
    Power: 3 Watts
    Tamb: -40 to +85°C
    Dims: 25.4 x 25.4 x 17.6mm
    CB/CE/UL EN62368 Approved

  • LS03 K3 Series

    Input: 85-305Vac
    Output: 12V
    Power: 3 Watts
    Tamb: -40 to 85°C
    Dims: 16.13 x 18.17 x 9.50 mm
    EN/UKCA 62368 Safety Approved
    Non Isolated

  • LS03 Series

    Input: 85-305Vac
    Outputs 3V3 to 24V
    Power: 3 Watt
    Tamb: -40 to 85°C
    Dims: 35 x 11 x 18mm
    UL / CE EN62368 Approved

  • LS03 R3 Series

    Input: 85-305Vac | 70 - 430Vdc
    Outputs: 3.3V to 24Vdc
    Power: 1.98 - 3 Watts
    Tamb: -40°C to +85°C
    Dims: 26.40 x 12.58 x 11.00 mm
    IEC/EN/UL62368 Approved

  • LS05 Series

    Input: 85-264Vac
    Outputs 3V3 to 24V
    Power: 5 Watt
    Tamb: -40 to 85°C
    Dims: 42 x 13.65 x 20.0mm
    UL / CE EN62368 Approved

  • LS05-26B Series

    Input: 90-528Vac
    Outputs 3V3 to 24V
    Power: 5 Watt
    Tamb: -40 to 85°C
    Dims: 44.5 x 13 x 24.0mm
    UL / CE EN62368

  • LD05 R2-M Series

    Input: 85 - 305V ac / 100 - 430V dc
    Outputs: 3.3 - 24V dc
    Power: 4.95 - 5.52 Watt
    Tamb: -40 to +85°C
    Dims: 45.70 x 25.40 x 21.50 mm
    EN62368 Approved

  • LS05 R3 Series

    Input: 85-305Vac
    Outputs 3.3V to 24V
    Power: 5 Watts
    Tamb: -40 to 85°C
    Dims: 26.40 x 14.73 x 11.00 mm
    IEC/EN/UL62368 Safety Approved

  • LS05 K3 Series

    Input: 85-305Vac
    Outputs 12V, 15V & 18Vdc
    Power: 5 Watts
    Tamb: -40 to 85°C
    Dims: 16.13 x 18.17 x 9.50 mm
    EN/UKCA 62368 Safety Approved
    Non Isolated

  • LD05 R2 Series

    Input: 85-305Vac
    Outputs: 3.3V to 24V
    Power: 5 Watts
    Tamb: -40 to +85°C
    Dims: 1 x 1 Inch
    EN/UL/CE EN62368 Approved

  • LS05 DR3 Series

    Input: 85-305Vac
    Outputs 3.3V to 24V
    Power: 5 Watts
    Tamb: -40 to 85°C
    Dims: 26.40 x 14.73 x 11.00 mm
    Meets Pollution degree 3 (EN62368-1)

  • LS08 Series

    Input: 85-305Vac
    Outputs 3V3 to 24V
    Power: 8 Watt
    Tamb: -40 to 85°C
    Dims: 44.5 x 15.0 x 22.45mm
    UL / CE EN62368 Approved

  • LDE10 Series

    Input: 85-264Vac
    Outputs: 3V3 to 24Vdc
    Power: 10 Watt
    Tamb: -40 to +70°C
    Dims: 53.80 x 28.80 x 19mm
    UL / CE EN62368 Approved

  • LD10 R2 Series

    Input: 85-305Vac
    Outputs: 3.3V to 24V
    Power: 10 Watts
    Tamb: -40 to +85°C
    Dims: 40 x 25.5 x 21mm
    EN/UL/CE EN62368/60335/61558 Approved

  • LHE15-R2 Series

    Input: 85-305Vac
    Outputs 3V3 to 48V
    Power: 15 Watt
    Tamb: -40 to 85°C
    Dims: 62 x 45 x 22.5mm
    UL / CE EN62368 Approved

  • LD15 R2 Series

    Input: 85-305Vac
    Outputs: 3.3V to 24V
    Power: 15 Watts
    Tamb: -40 to +85°C
    Dims: 47.6 x 26.8 x 23.5mm
    EN/UL/CE EN62368/60335/61558 Approved

  • LD20 R2 Series

    Input: 85-305Vac
    Outputs: 3.3V to 24V
    Power: 20 Watts
    Tamb: -40 to +85°C
    Dims: 52.4 x 27.2 x 24.00mm
    EN/UL/CE EN62368/60335/61558 Approved

  • LHE25 Series

    Input: 85-264Vac
    Outputs 3V3 to 24V
    Power: 25 Watt
    Tamb: -40 to 85°C
    Dims: 70 x 48 x 23.5mm
    UL / CE EN62368 Approved

  • LD30 R2 Series

    Input: 85-305Vac
    Outputs: 3.3V to 24V
    Power: 30 Watts
    Tamb: -40 to +85°C
    Dims: 69.5 x 39.00 x 24.00mm
    EN/UL/CE EN62368/60335/61558 Approved

  • LHE40 Series

    Input: 85-264Vac
    Outputs 3V3 to 48V
    Power: 40 Watt
    Tamb: -40 to 70°C
    Dims: 89 x 63.5 x 25.0mm
    UL / CE EN62368 Approved

  • LHE60 Series

    Input: 85-264Vac
    Outputs 5V to 48V
    Power: 60 Watt
    Tamb: -40 to 70°C
    Dims: 109 x 58.5 x 30.0mm
    UL / CE EN62368 Approved

  • CBM70S Series

    Input: 90-264Vac
    Outputs: 12 to 48V
    Power: 70 Watt
    Tamb: -40°C to +85°C
    Dims: Half Brick
    UL / CE EN62368-1 Approved

  • CBM101S Series

    Input: 90-264Vac
    Outputs: 12 to 48V
    Power: 100 Watt (120 Watts for 5 secs)
    Tamb: -40°C to +85°C
    Dims: Full Brick
    UL / CE EN62368-1 Approved

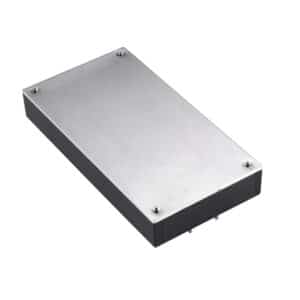

  • CBM100S Series

    Input: 90-264Vac
    Outputs: 12 to 48V
    Power: 100 Watt
    Tamb: -20°C to +85°C
    Dims: Full Brick
    UL / CE EN60950 Approved

  • CBM150S Series

    Input: 90-264Vac
    Outputs: 12 to 54V
    Power: 150 Watt
    Tamb: -40°C to +90°C
    Dims: Full Brick
    EN55032, IEC/EN/UL 62368-1 Approved

  • PDF700S Series

    Input: 90-264Vac
    Outputs: 12 to 56V
    Power: 700 Watt
    Tamb: -40°C to +100°C (Baseplate)
    Dims: Full Brick
    UL / CE EN62368 Approved

  • PFC750 Series

    Input: 90-264Vac
    Output: 390Vdc
    Power: 750 Watt
    Tamb: -40°C to +100°C (Baseplate)
    Dims: Half Brick
    UL / CE EN62368 Approved

  • AIF04ZPFC Series

    Input: 85 - 264Vac
    Output: 380Vdc
    Power: 1600 Watts
    Temp: -40 to 100˚C
    Dims: 116.8x61x13.95mm (4.6x2.4x0.55")
    UL / CE Approved
    2 Year Warranty

  • AIF06ZPFC Series

    Input: 85 - 264Vac
    Output: 380Vdc
    Power: 2400 Watts
    Temp: -40 to 100˚C
    Dims: 116.8x61x13.95mm (4.6x2.4x0.55")
    UL / CE Approved
    2 Year Warranty
