APPLICATION

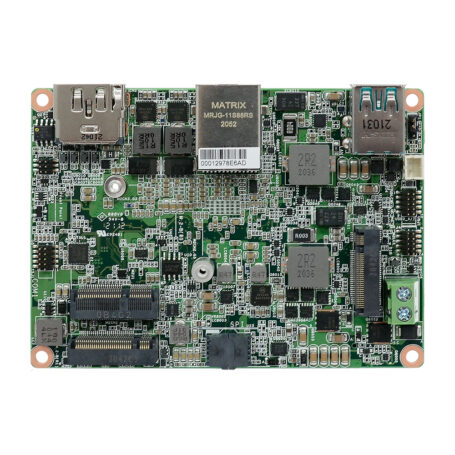

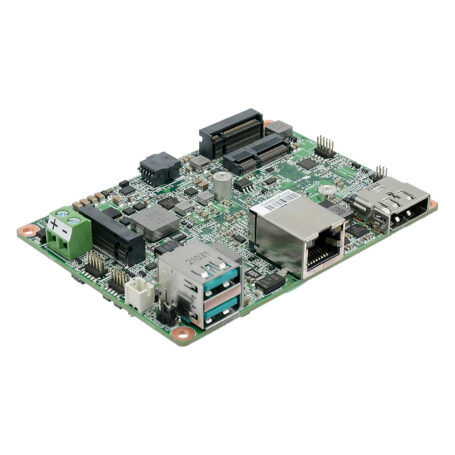

The WL053 is a high-performance 2.5″ single board computer powered by 8th Gen Intel® Core™, Celeron®, and i3/i5/i7 ULT processors, making it ideal for space-constrained industrial applications. Supporting up to 32GB of DDR4 2400MHz memory via a single SODIMM, it delivers strong processing and graphics with Intel® UHD Graphics and DP++ video output at resolutions up to 4096×2304 @ 60Hz.

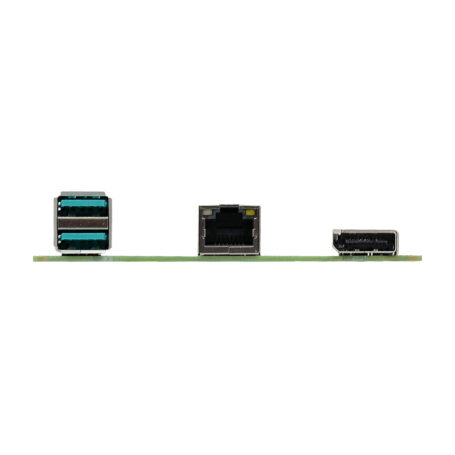

Compact at just 100 x 72 mm, the WL053 offers rich I/O including 1 Intel® GbE LAN, 1 COM, 2 USB 3.1 Gen2, and 2 USB 2.0 ports. For expansion, it includes one M.2 E key and two M.2 B key slots, supporting PCIe, SATA, and USB interfaces. Designed for industrial reliability, it supports a wide 9–36V DC input, TPM 2.0, and operates in extended temperature ranges from -30°C to +80°C.
Ideal for rugged edge computing, factory automation, and embedded control, the WL053 delivers processing power and I/O flexibility in a durable, fanless design.
feature list
Supports Intel® UHD Graphics 620/610 with 4K resolution
Includes 1 x DP++
M.2 expansion: 1 x E key (PCIe x2/USB 2.0) and 2 x B key (PCIe x1/SATA 3.0/USB)
1 x Intel® I219V/I219LM GbE with iAMT support (i7/i5 only)
2 x USB 3.1 Gen2 and 2 x USB 2.0 ports
1 x RS-232/422/485 serial port and 1 x 8-bit DIO
Wide 9~36V DC power input via terminal block
Supports fTPM 2.0
Watchdog timer programmable from 1 to 255 seconds
MTBF up to 569,616 hours at 25°C
| MODEL NUMBER | PROCESSOR | MEMORY | TEMPERATURE |
|---|---|---|---|
| 770-WL0531-000G | Intel Core® i7-8665UE | 1 SODIMM | -5ºC to 65ºC |
| 770-WL0531-100G | Intel Core® i5-8365UE | 1 SODIMM | -5ºC to 65ºC |
| 770-WL0531-200G | Intel Core® i3-8145UE | 1 SODIMM | -5ºC to 65ºC |
| 770-WL0531-300G | Intel Core® Celeron 4305UE | 1 SODIMM | -5ºC to 65ºC |
| 770-WL0531-400G | Intel Core® i7-8665UE | 1 SODIMM | -30ºC to 80ºC |
| 770-WL0531-500G | Intel Core® i5-8365UE | 1 SODIMM | -30ºC to 80ºC |
| 770-WL0531-600G | Intel Core® i3-8145UE | 1 SODIMM | -30ºC to 80ºC |
| 770-WL0531-700G | Intel Core® Celeron 4305UE | 1 SODIMM | -30ºC to 80ºC |
